BUFLEX 0.6/1kV Reeling Cable with 2 Pilot Cores
BUFLEX 0.6/1kV reeling cable with 2 pilot cores supplies power, earth continuity and control functions to mobile mining and tunnelling equipment where the cable travels in one plane. The compact design combines Class 5 plain-copper conductors, XLPE insulation, a central strength member and a halogen-free yellow PUR outer sheath.
- Rated voltage: U0/U 0.6/1 kV; Um 1.2 kV.
- Core arrangement: Three power cores, three earth cores and two pilot/control cores.
- Conductor: Flexible Class 5 plain copper to IEC 60228.
- Insulation: XLPE special compound.
- Outer sheath: Halogen-free PUR, yellow RAL 1018.
- Movement limit: One-plane deflection, maximum 60 m/min.
- Minimum bending radius: 6 × overall diameter.
For an RFQ, send the required size, length, equipment, reel or roller arrangement and operating environment.
BUFLEX Reeling Cable for Mobile Mining Equipment
The BUFLEX 0.6/1kV reeling cable with 2 pilot cores is a low-voltage power and control cable for mobile equipment in mining and tunnelling routes where mechanical damage is a persistent concern. Buyers may also encounter the spelling BUTFLEX cable in project enquiries. This page uses BUFLEX as the product designation while retaining BUTFLEX as a search and cross-reference term.
Three power cores, three divided earth cores and two pilot/control cores share a compact round construction. The central strength member supports the cable assembly, while the yellow halogen-free PUR sheath is specified for abrasion, tearing and hydrolysis resistance. This makes the design relevant to mobile drills, loaders and similar equipment that repeatedly pays cable in and out along a controlled path.
- Suitable for: one-plane reeling or guided movement up to 60 m/min.
- Confirm before ordering: conductor size, reel geometry, route length, tensile load and pilot-core interface.
- Choose another construction when: the route imposes multi-plane flexing, uncontrolled torsion or a different voltage class.
Explore the mining and tunnelling cable range for other movement patterns and voltage levels.
Construction

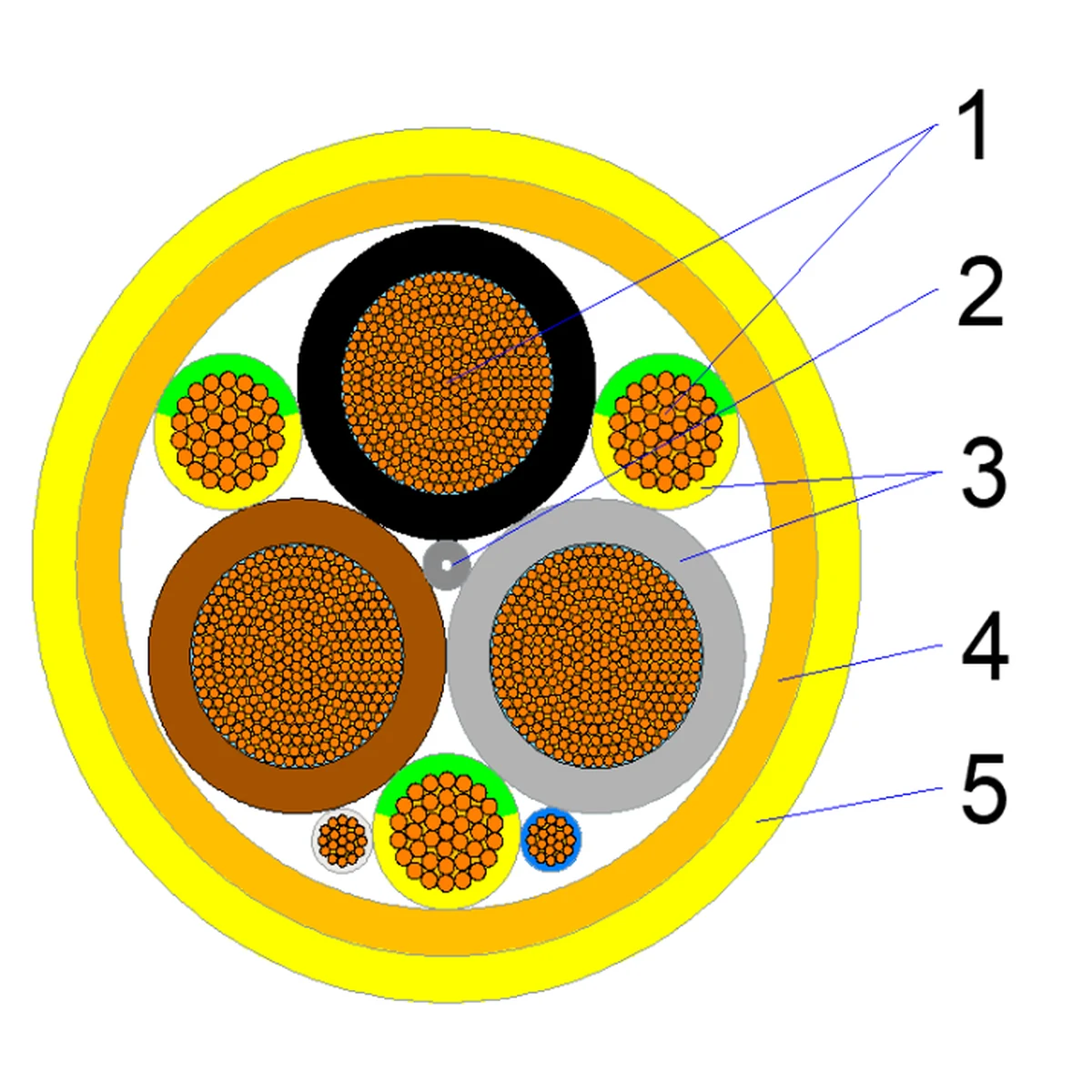

The BUFLEX cable cross-section shows a compact three-phase layout with divided earth cores, two pilot/control cores and a central strength member. Each confirmed layer has a specific electrical or mechanical function.
| Layer | Confirmed construction | Buyer relevance |
|---|---|---|
| Conductor | Flexible plain copper, Class 5 to IEC 60228 | Fine stranding supports repeated bending in the specified reeling path. |
| Central element | Central strength member | Supports the laid-up core assembly under movement and tensile load. |
| Insulation | XLPE special compound on power, earth and control cores | Separates the power, protective-earth and control circuits within the 0.6/1 kV design. |
| Core identification | Power: brown, black, grey; earth: yellow/green; control: white, blue | Helps installers distinguish circuit functions during termination. |
| Binder | Non-hygroscopic synthetic tape when required by the manufacturing design | Maintains the cable assembly before bedding. |
| Bedding | Special flexible thermoplastic compound | Provides a resilient layer between the core assembly and outer sheath. |
| Outer sheath | Halogen-free special PUR compound, yellow RAL 1018 | Specified for abrasion, tear and hydrolysis resistance in harsh handling environments. |
Ordering check: The two pilot/control conductors sit in the interstitial areas. Confirm their required cross-section and machine interface rather than treating them as spare power conductors.
Applications
This BUFLEX mining reeling cable is intended for mobile equipment operating on a controlled, one-plane cable route. The confirmed 60 m/min maximum speed and 6 × OD minimum bending radius should be checked against the actual reel, sheaves, rollers and travel distance.
- Power and pilot/control connection for mobile mining and tunnelling equipment.
- Reeling routes that bend the cable in one plane only.

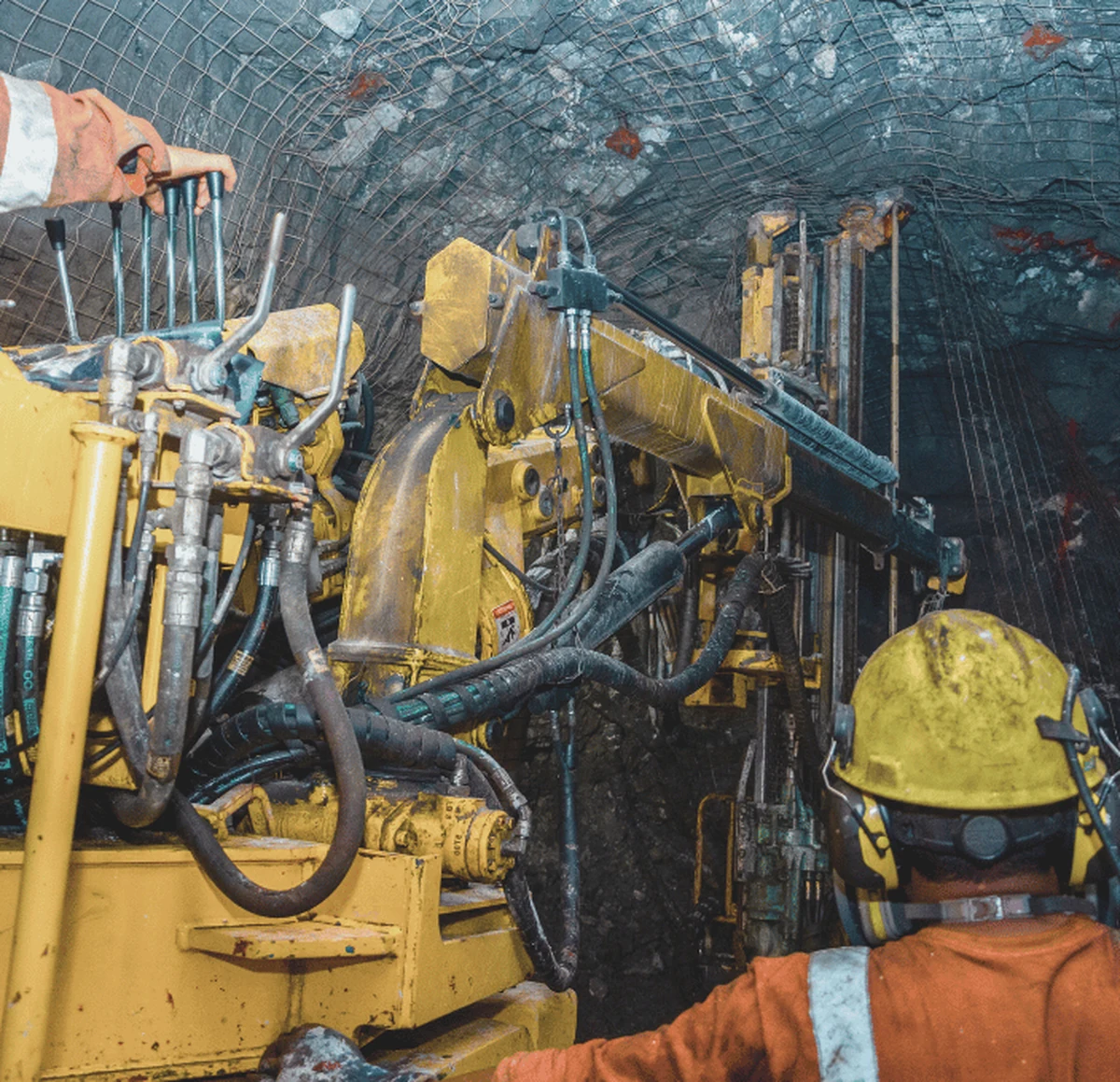

- Drilling rigs, loaders and other heavy mobile machinery using guided cable travel.
- Harsh environments where abrasion, tearing and hydrolysis resistance are selection priorities.
Application Boundary
Do not assume suitability for random multi-plane flexing, forced twisting, vertical suspension or continuous submersion. Those duties change the mechanical and environmental requirements. Confirm reel diameter, roller profile, acceleration, tensile load and cable storage arrangement before approving a substitute.
Specifications
The following values are transcribed from the supplied TEBAOFLEX product material. Final dimensions should be confirmed for the selected conductor size before manufacture.
| Rated voltage | U0/U = 0.6/1 kV; Um = 1.2 kV |
|---|---|
| AC test voltage | 3.5 kV for 5 minutes |
| Maximum conductor operating temperature | 90°C |
| Short-circuit temperature | 250°C maximum for 5 seconds |
| Minimum temperature, flexible operation | -20°C |
| Minimum temperature, fixed installation | -30°C |
| Maximum tensile load | 20 N/mm² |
| Minimum bending radius | 6 × overall diameter |
| Movement | One-plane deflection only |
| Maximum operating speed | 60 m/min |
| Outer sheath | Halogen-free PUR, yellow RAL 1018 |
Material and Performance Data
| Item | Component | Characteristic | Test method |
|---|---|---|---|
| Appearance | Cable surface | Smooth and free from defects | IEC 60502-1; EN 50395 |
| Conductor resistance | Conductor | Not more than the value in the applicable size table | IEC 60228 |
| Dielectric withstand | Complete cable | 3.5 kV AC for 5 minutes | IEC 60502-1 |
| Tensile strength | XLPE insulation | Not less than 12.5 MPa | EN 60811-501 |
| Elongation | XLPE insulation | Not less than 200% | EN 60811-501 |
| Tensile strength | PUR sheath | Not less than 20.0 MPa | EN 60811-501 |
| Elongation | PUR sheath | Not less than 300% | EN 60811-501 |
| Hot set: elongation under load | XLPE insulation | Not more than 175% | EN 60811-507 |
| Hot set: permanent deformation | XLPE insulation | Not more than 25% | EN 60811-507 |
| Oil resistance | PUR sheath | Not more than 30% variation in tensile strength | EN 60811-404 |
| Flame retardance | Complete cable | No flame propagation | IEC 60332-1-2 |
| Abrasion resistance | PUR sheath | No damage after abrasion test | EN 50396 |
| Halogen-free performance | PUR sheath | Halogen-free per IEC 60754-1/2 | IEC 60754-1/2 |
Available Sizes and Nominal Dimensions
| Core configuration (mm²) | Main conductor OD (mm) | Earth conductor OD (mm) | Control conductor OD (mm) | Overall diameter min-max (mm) | Net weight (kg/km) | Short-circuit current, 1 s (kA) |
|---|---|---|---|---|---|---|
| 3×25 + 3G6 + 2×1×1 | 6.5 | 3.0 | 2.3 | 22.5-24.0 | 1150 | 3.5841 |
| 3×35 + 3G6 + 2×1×1.5 | 7.5 | 3.0 | 2.6 | 26.0-28.0 | 1550 | 5.0141 |
| 3×50 + 3G10 + 2×1×1.5 | 9.1 | 3.9 | 2.6 | 29.5-32.0 | 2150 | 7.1541 |
| 3×70 + 3G16 + 2×1×1.5 | 10.8 | 5.1 | 2.6 | 34.0-37.0 | 3000 | 10.0141 |
| 3×95 + 3G16 + 2×1×1.5 | 12.1 | 5.1 | 2.6 | 37.5-40.5 | 3650 | 13.5941 |
| 3×120 + 3G25 + 2×1×1.5 | 14.3 | 6.5 | 2.6 | 42.0-45.0 | 4800 | 17.1641 |
Size selection: Check running current, voltage drop, short-circuit duty, route length and reel capacity together. A larger conductor changes cable diameter, weight, bending demand and stored drum length.
Standards
The supplied product brochure lists the following construction and test references for this BUFLEX 0.6/1kV cable.
| Reference | Supplied relationship |
|---|---|
| IEC 60228 | Class 5 flexible copper conductor construction |
| IEC 60502-1 | 0.6/1 kV power-cable and dielectric-withstand reference |
| IEC 60332-1-2 | Single-cable flame-propagation test reference |
| IEC 60754-1/2 | Halogen-free sheath test reference |
| EN 60811-501 | Tensile strength and elongation test methods |
| EN 60811-504 | Impact test reference |
| EN 60811-507 | Hot-set test method |
| EN 60811-404 | Oil-resistance test method |
| EN 50395 | Appearance test reference |
| EN 50396 | Abrasion-resistance test reference |
| DIN VDE 0298 Part 4 | Current-carrying-capacity reference |
State any project-specific inspection, test report, marking or documentation requirement in the enquiry so it can be reviewed against the ordered construction.
