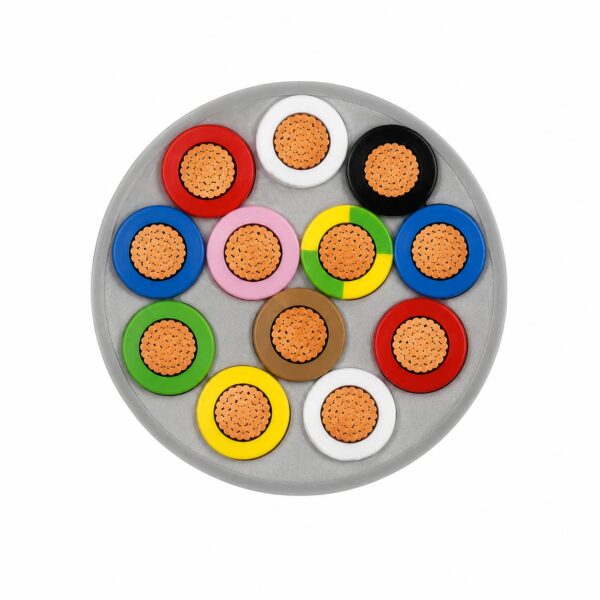

C800 Extra-Flexible PVC Reeling Cable 0.6/1 kV
C800 extra-flexible PVC reeling cable is a compact 0.6/1 kV multicore cable for spring reels, extension reels and moving-machine wiring. It carries control, signal and power circuits where installation space and cable handling are the main design constraints.
C800 PVC reeling cable is built for compact spring-reel applications and machine wiring with restricted installation space. The multicore round construction can combine control, signal and low-voltage power circuits under a transparent PVC sheath.
Short conductor lays increase flexibility, while colour-coded cores remain visible through the outer jacket. An integrated rip cord simplifies sheath removal during termination. The cable is rated 0.6/1 kV for travel speeds up to 60 m/min. Minimum bending radii are 8 x cable diameter in dynamic movement and 3 x diameter in static installation. The operating range is -10°C to +60°C, with a maximum conductor temperature of 80°C.
C800 is suited to spring reels, extension reels and compact machine routes that do not use level-wind storage or repeated deflection pulleys. Dedicated cable mesh grips and spring shock absorbers protect the cable entry and transfer tensile load into the equipment. Specify the control, signal and power-core schedule, drum diameter, dynamic bend radius, travel length, reel spring force and termination method with the enquiry.
Construction
| Layer | Construction detail |
|---|---|
| Conductor | Fine copper and reinforcing steel strands for small sections; copper conductors for sections above 3 mm². |
| Core insulation | Mass-coloured PVC insulation for visible circuit identification. |
| Core assembly | Short-lay multicore round construction for higher flexibility. |
| Outer sheath | Transparent PVC with integrated rip cord. |
| Strain transfer | Used with dedicated cable mesh grips and spring shock absorbers. |
Termination Benefit
The transparent jacket keeps core colours visible before stripping, and the rip cord opens the sheath without cutting into the insulated conductors.
Applications
- Compact spring reels.
- Extension reels for machinery and service equipment.
- Moving machine control and signal wiring.
- Combined low-voltage power and auxiliary circuits.
- Installations where a small cable and reel envelope is required.
Related Cable Selection
For a compact PUR sheath and monospiral capability, use the RP / RP-D reeling cable. For higher abrasion exposure or heavier random winding, compare the GPM / GPM-RF PUR cable. See the industrial cable range for other moving-machine and flexible wiring products.
Specifications
| Parameter | C800 data |
|---|---|
| Rated voltage | 0.6/1 kV |
| Travel speed | Up to 60 m/min horizontal |
| Minimum bending radius | Dynamic: 8 x cable diameter; static: 3 x cable diameter |
| Ambient temperature | Flexing and fixed: -10°C to +60°C |
| Maximum conductor temperature | 80°C |
| Circuit functions | Control, signal and power |
| Reel types | Compact spring reels and extension reels |
| Sheath | Transparent PVC with rip cord |
Standards
The technical references below define the conductor, test or installation basis used for this cable family.
| Reference | Product application |
|---|---|
| IEC 60502-1 | Voltage-test reference for the 0.6/1 kV cable construction. |
Production and Ordering Records
- Routine electrical test report covers the supplied conductor arrangement.
- Core colours and circuit numbering are recorded in the wiring schedule.
- Reel attachment method and cable grip size are matched to the ordered outside diameter.
Related cable options
Compare these cable options by service combination, movement, load, voltage and transmission requirement.

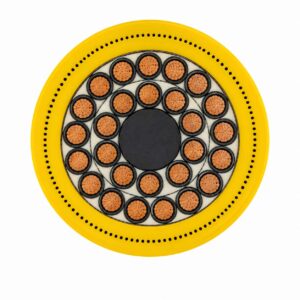

RP / RP-D Compact PUR Reeling Cable 0.6/1 kV
