NGFLGOEU Flat Festoon Cable 300/500V
NGFLGOEU cable is a 300/500V flat rubber festoon cable for one-plane bending on crane trolleys, machine tools and moving material-handling equipment.
- Power, control, individually screened and bus-cable configurations
- Oil, ozone, UV, moisture and outdoor resistance
- Flexible duty from -35°C to +80°C; conductor up to +90°C
- Source-listed trolley festoon speed guidance up to 180 m/min
Send the cable marking or required core configuration, conductor size, travel distance, trolley speed and quantity for engineering review and quotation.
Product overview
NGFLGOEU Cable for Fast, Repeated Festoon Travel
NGFLGOEU flat festoon cable supplies low-voltage power and control to crane trolleys, machine tools and moving material-handling equipment. Its parallel flat construction is intended for frequent bending in one plane, helping cable loops track predictably in a properly engineered festoon system.
The 300/500V family includes NGFLGOEU-J and NGFLGOEU-O arrangements for power, control, bus and individually screened circuits. Bare flexible copper conductors, EPR rubber insulation and a black chloroprene-rubber outer sheath support demanding indoor or outdoor duty. The source data lists resistance to oil, ozone, UV and moisture, with flexible operation from -35°C to +80°C.
- Electrical: 300/500V rated voltage and 2.5kV AC test for 5 minutes
- Mechanical: maximum tensile load 15 N/mm²; torsion is not permitted
- Selection: configurations from control cores and power cores to screened pairs and screened power variants
Use the port and festoon cable range to compare moving-cable options. For other installation modes, review the YSLTOE-J reeling cable or PUR-HF festoon cable. Final suitability depends on the exact configuration, carrier geometry, bend radius, travel speed, tensile load and operating environment.
Construction

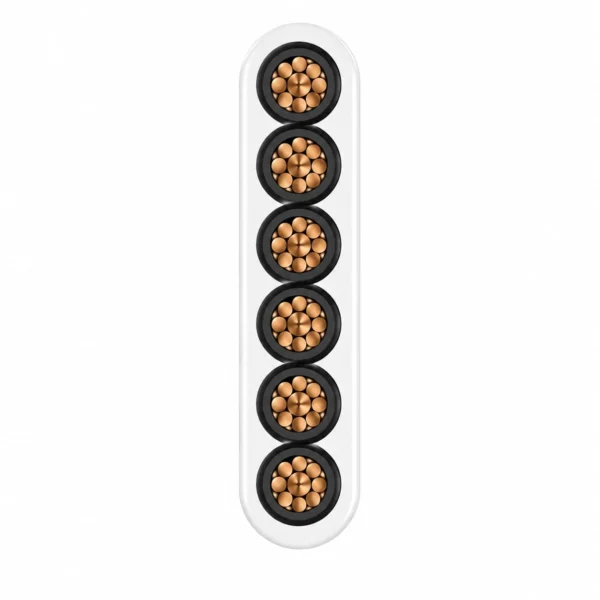

NGFLGOEU Cable Construction
| Conductor | Bare electrolytic copper; extremely finely stranded Class 6 up to 25 mm² and finely stranded Class 5 above 35 mm², as stated in the supplied source. |
|---|---|
| Insulation | EPR rubber compound 3GI3, with material reference to DIN VDE 0207 Part 20. |
| Core identification | Up to 5 cores: green/yellow for -J or black for -O, plus black, blue, brown and grey. More than 5 cores: black with white numbers. |

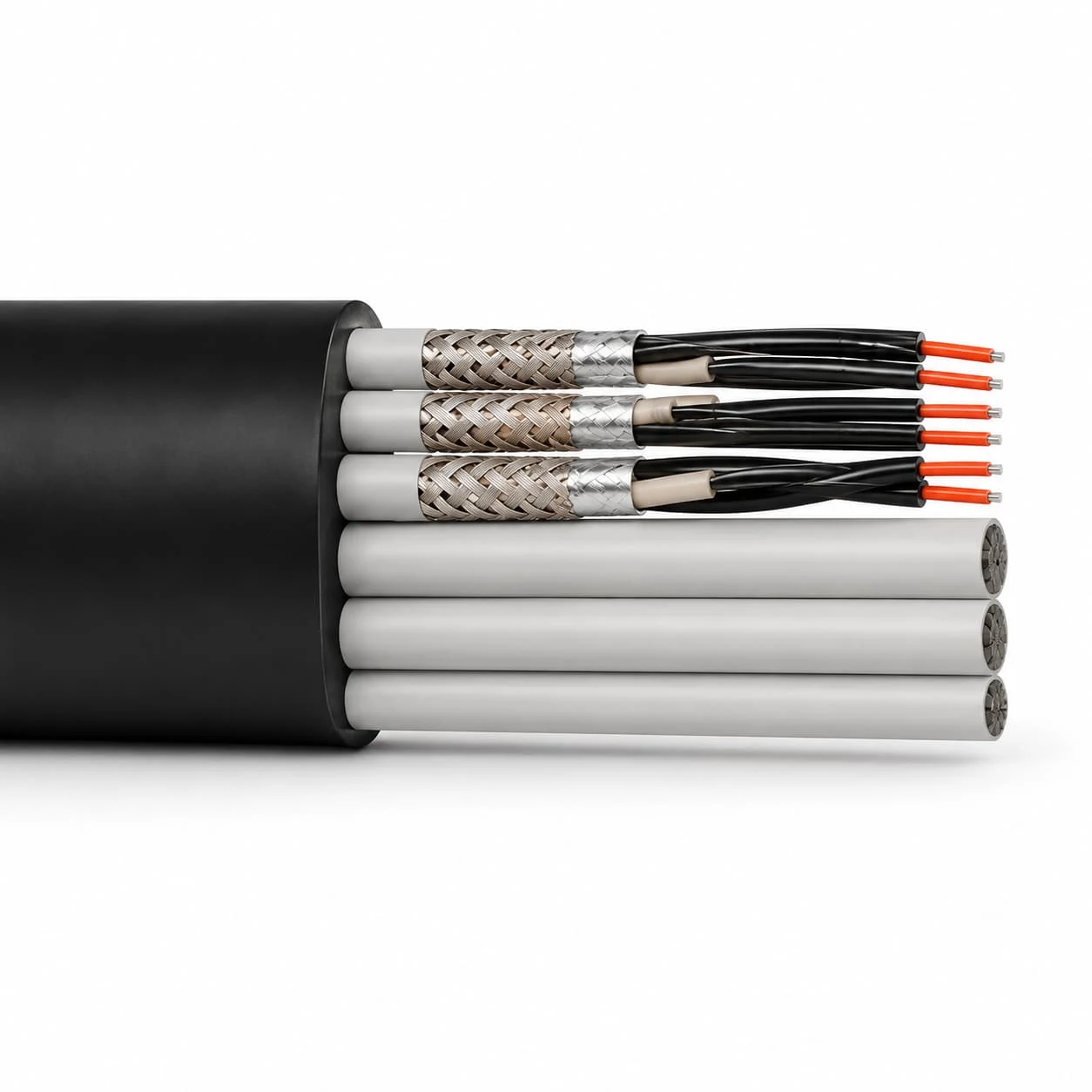

| Optional individual screen | Tinned-copper wire braid; source-listed coverage approximately 60% for shielded cores and approximately 80% for twisted and shielded pairs. |
| Core arrangement | Parallel; configurations above 12 cores use parallel bundles. |
| Outer sheath | Black chloroprene-rubber compound 5GM3, with material reference to DIN VDE 0207 Part 21. |

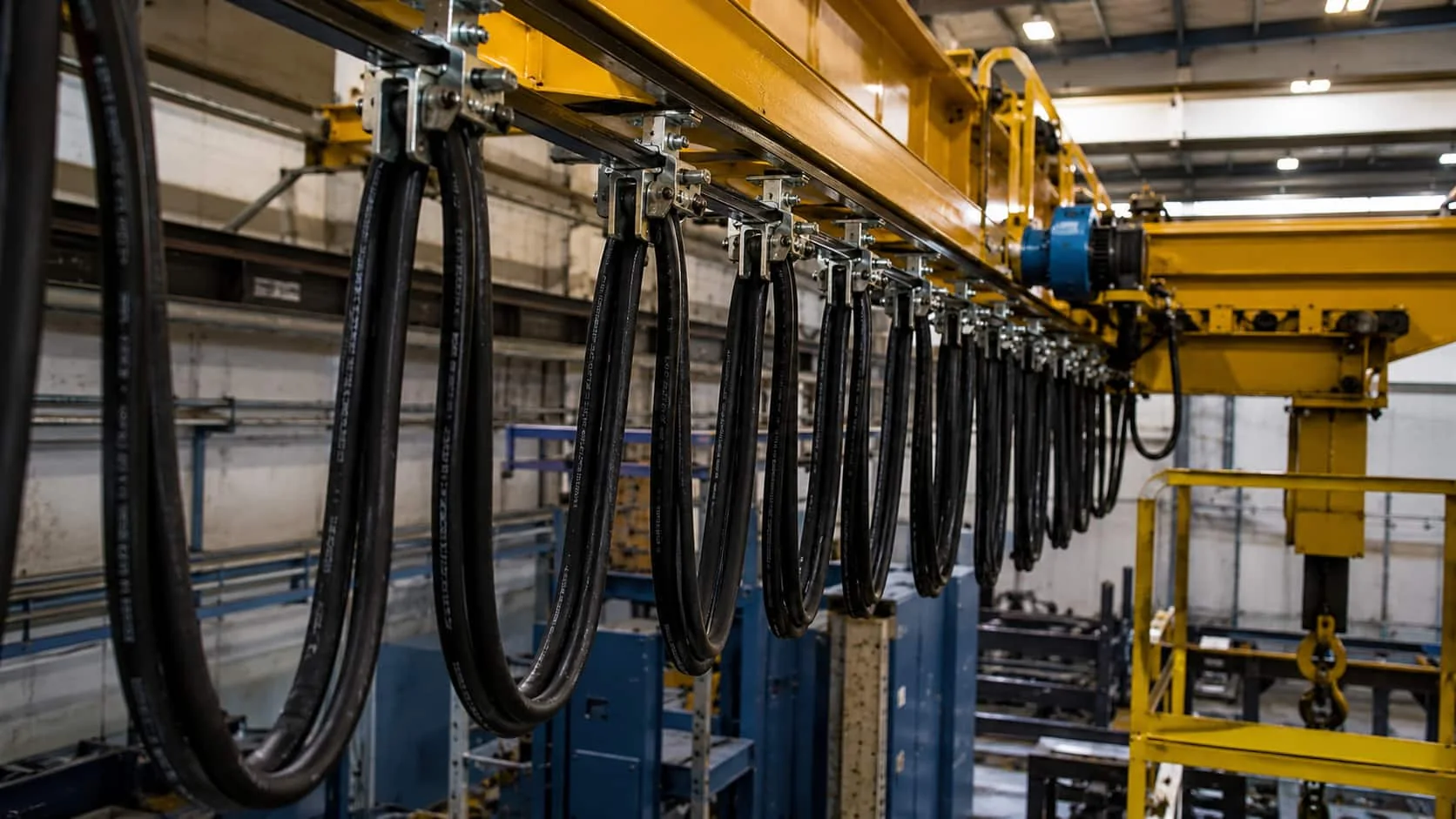

Applications
Applications and Operating Boundaries
- Indoor and outdoor festoon routes exposed to ozone, UV and moisture
- Moving power and control circuits exposed to high mechanical stress
- Screened control, bus or power circuits where the selected configuration includes the specified braid
Specifications
Electrical, Thermal and Mechanical Data
| Rated voltage | 300/500V (600V source marking reference) |
|---|---|
| Maximum permissible operating voltage | AC 0.7/1.2kV; DC 0.9/1.8kV |
| AC test voltage | 2.5kV for 5 minutes |
| Current-carrying reference | DIN VDE 0298-4; table values refer to installation free in air at 30°C ambient |
| Maximum conductor temperature | +90°C |
| Maximum short-circuit conductor temperature | +250°C |
| Ambient temperature, fixed | -50°C to +80°C |
| Ambient temperature, fully flexible | -35°C to +80°C |
| Maximum tensile load | 15N/mm² |
| Torsional stress | Not allowed |
| Minimum bending radius | See configuration table; general reference DIN VDE 0298 Part 3 |
Available Source-Listed Configurations
Dimensions and weights are approximate. “C” identifies a source-listed screened configuration. Blank part-number cells mean no part number was visible in the supplied table.| Family | Configuration | Part no. | MLFB | Conductor Ø max. (mm) | Height min.–max. (mm) | Width min.–max. (mm) | Bend radius moving min. (mm) | Weight approx. (kg/km) | Tensile force max. (N) | Resistance max. at 20°C (Ω/km) | Current in free air (A) | Short-circuit current (kA) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NGFLGOEU-J control | 3x1.5 | — | 5DG5751 | 1.5 | 5.7–6.2 | 11.7–12.5 | 19 | 130 | 68 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 4x1.5 | 20003476 | 5DG5711 | 1.5 | 5.7–6.2 | 15–15.8 | 19 | 170 | 90 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 5x1.5 | — | 5DG5712 | 1.5 | 5.5–6 | 18.5–20.1 | 18 | 210 | 113 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 7x1.5 | — | 5DG5714 | 1.5 | 5.5–6 | 25–26.8 | 18 | 280 | 158 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 8x1.5 | 20003480 | 5DG5715 | 1.5 | 5.5–6 | 27.5–29.3 | 18 | 310 | 180 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 10x1.5 | — | 5DG5717 | 1.5 | 6.2–6.7 | 35.5–37 | 20 | 440 | 225 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 12x1.5 | 20003483 | 5DG5718 | 1.5 | 6.3–6.8 | 42–43.5 | 20 | 530 | 270 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 24x1.5 | 20003485 | 5DG5720 | 1.5 | 11.5–12.3 | 51–53.2 | 62 | 1040 | 540 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 42x1.5 | 20003470 | 5DG5653 | 1.5 | 15.1–16.1 | 70.2–72.3 | 81 | 1920 | 945 | 13.3 | 24 | 0.21 |
| NGFLGOEU-J control | 4x2.5 | 20003487 | 5DG5721 | 2 | 6.8–7.3 | 18.5–19.5 | 22 | 260 | 150 | 7.98 | 32 | 0.36 |
| NGFLGOEU-J control | 5x2.5 | — | 5DG5722 | 2 | 6.6–7.4 | 22.9–24.6 | 22 | 320 | 188 | 7.98 | 32 | 0.36 |
| NGFLGOEU-J control | 7x2.5 | 20003490 | 5DG5724 | 2 | 6.8–7.4 | 31–32.8 | 22 | 440 | 263 | 7.98 | 32 | 0.36 |
| NGFLGOEU-J control | 8x2.5 | 20003492 | 5DG5725 | 2 | 6.8–7.4 | 34.1–35.9 | 22 | 490 | 300 | 7.98 | 32 | 0.36 |
| NGFLGOEU-J control | 10x2.5 | — | 5DG5727 | 2 | 7.4–8 | 43–45.3 | 24 | 660 | 375 | 7.98 | 32 | 0.36 |
| NGFLGOEU-J control | 12x2.5 | 20003494 | 5DG5728 | 2 | 7.4–8 | 50.6–53.5 | 24 | 780 | 450 | 7.98 | 32 | 0.36 |
| NGFLGOEU-J control | 24x2.5 | 20003496 | 5DG5730 | 2 | 14.8–15.6 | 65.4–68 | 78 | 1690 | 900 | 7.98 | 32 | 0.36 |
| NGFLGOEU-J control | 7x(3x1) | 20037062 | 5DG5483 | 1.3 | 8.7–10.3 | 49.3–51.8 | 41 | 770 | 315 | 19.5 | 19 | 0.14 |
| NGFLGOEU-J power | 4x4 | 20003498 | 5DG5731 | 2.8 | 8.4–8.9 | 22.5–23.5 | 36 | 390 | 240 | 4.95 | 43 | 0.57 |
| NGFLGOEU-J power | 4x6 | 20003503 | 5DG5741 | 3.5 | 9–9.5 | 25.4–26.9 | 38 | 500 | 360 | 3.3 | 56 | 0.86 |
| NGFLGOEU-J power | 4x10 | 20003509 | 5DG5765 | 4.5 | 10.5–11 | 30.1–32.6 | 44 | 750 | 600 | 1.91 | 78 | 1.43 |
| NGFLGOEU-J power | 4x16 | 20003511 | 5DG5766 | 5.6 | 12.1–12.9 | 36–37.5 | 65 | 1060 | 960 | 1.21 | 104 | 2.29 |
| NGFLGOEU-J power | 4x25 | 20003513 | 5DG5767 | 6.6 | 13.6–14.4 | 41.9–43.4 | 72 | 1500 | 1500 | 0.78 | 138 | 3.58 |
| NGFLGOEU-J power | 4x35 | 20003515 | 5DG5768 | 8.1 | 14.8–16.7 | 47–49.9 | 84 | 2040 | 2100 | 0.55 | 170 | 5.01 |
| NGFLGOEU-J power | 4x50 | 20003517 | 5DG5770 | 9.5 | 18–19 | 56–58 | 95 | 2830 | 3000 | 0.39 | 212 | 7.15 |
| NGFLGOEU-J power | 4x70 | 20003519 | 5DG5771 | 11.1 | 20.3–21.3 | 63.2–65.2 | 107 | 3820 | 4200 | 0.27 | 263 | 10.01 |
| NGFLGOEU-J power | 4x95 | 20003521 | 5DG5772 | 12.9 | 23.1–24.1 | 72.6–74.6 | 121 | 4930 | 5700 | 0.21 | 316 | 13.59 |
| NGFLGOEU-J power | 4x120 | — | 5DG5773 | 15 | 24.2–27.2 | 79.2–83.2 | 136 | 6220 | 7200 | 0.16 | 370 | 17.16 |
| NGFLGOEU-J power | 5x4 | — | 5DG5732 | 2.8 | 8.5–9 | 28.9–31.2 | 36 | 510 | 300 | 4.95 | 43 | 0.57 |
| NGFLGOEU-J power | 5x6 | 20003505 | 5DG5742 | 3.5 | 9.1–9.6 | 31.8–34.1 | 38 | 640 | 450 | 3.3 | 56 | 0.86 |
| NGFLGOEU-J power | 5x10 | — | 5DG5687 | 4.5 | 10.5–11.3 | 39.2–41.6 | 45 | 960 | 750 | 1.91 | 78 | 1.43 |
| NGFLGOEU-J power | 5x16 | 20003523 | 5DG5776 | 5.6 | 12.2–12.7 | 45.1–47.6 | 64 | 1360 | 1200 | 1.21 | 104 | 2.29 |
| NGFLGOEU-J power | 7x4 | 20003501 | 5DG5734 | 2.8 | 8.4–9 | 38.5–40.9 | 36 | 690 | 420 | 4.95 | 43 | 0.57 |
| NGFLGOEU-J power | 7x6 | 20003507 | 5DG5744 | 3.5 | 9–9.6 | 42.9–45.3 | 38 | 870 | 630 | 3.3 | 56 | 0.86 |
| NGFLGOEU-J power | 7x10 | — | 5DG5865 | 4.5 | 10.5–11.3 | 53–55.9 | 45 | 1320 | 1050 | 1.91 | 78 | 1.43 |
| NGFLGOEU-J power | 7x16 | — | 5DG5866 | 5.6 | 12.6–13.4 | 60.7–63.9 | 67 | 1990 | 1680 | 1.21 | 104 | 2.29 |
| NGFLGOEU-J power | 7x25 | 20070764 | 5DG5867 | 6.6 | 14.8–15.6 | 72.6–75.9 | 78 | 2820 | 2625 | 0.78 | 138 | 3.58 |
| NGFLGOEU-J power | 7x35 | — | 5DG5868 | 8.1 | 16.4–17.4 | 83.7–87 | 87 | 3820 | 3675 | 0.55 | 170 | 5.01 |
| (N)GFLGOEU-O control, screened | 12x1(C) | 20003474 | 5DG5670 | 1.3 | 6.6–7.1 | 48.2–51.3 | 21 | 660 | 180 | 19.5 | 19 | 0.14 |
| (N)GFLGOEU-O control, screened | 4x1.5(C) | 20155763 | 5DG5880 | 1.5 | 6.8–7.4 | 18.5–19.5 | 22 | 250 | 90 | 13.3 | 24 | 0.21 |
| (N)GFLGOEU-O control, screened | 8x1.5(C) | — | 5DG5884 | 1.5 | 6.8–7.4 | 35.1–35.1 | 22 | 510 | 180 | 13.3 | 24 | 0.21 |
| (N)GFLGOEU-O control, screened | 12x1.5(C) | 20003527 | 5DG5888 | 1.5 | 7.4–8 | 51.7–55 | 24 | 780 | 270 | 13.3 | 24 | 0.21 |
| (N)GFLGOEU-O bus, screened | 4x(2x1)C | 20003528 | 5DG5890 | 1.3 | 10.5–11.3 | 31.8–33.8 | 45 | 630 | 120 | 19.5 | 19 | 0.14 |
| (N)GFLGOEU-O bus, screened | 6x(2x2.5)C | 20054902 | 5DG5898 | 2 | 14.2–15.2 | 60–62.7 | 76 | 1680 | 450 | 7.98 | 32 | 0.36 |
| (N)GFLGOEU-O bus, screened | 7x(2x1)C | 20003529 | 5DG5893 | 1.3 | 10.5–11.3 | 53.1–56 | 45 | 1090 | 210 | 19.5 | 19 | 0.14 |
| (N)GFLGOEU-J power, screened | 4x4(C) | — | 5DG5484 | 2.8 | 9.2–10.2 | 26.3–29.3 | 41 | 550 | 240 | 4.95 | 43 | 0.57 |
| (N)GFLGOEU-J power, screened | 4x6(C) | — | 5DG5485 | 3.5 | 9.5–11.1 | 28.8–31.8 | 44 | 665 | 360 | 3.3 | 56 | 0.86 |
| (N)GFLGOEU-J power, screened | 4x10(C) | — | 5DG5486 | 4.5 | 11.7–13.3 | 36–39 | 67 | 1060 | 600 | 1.91 | 78 | 1.43 |
| (N)GFLGOEU-J power, screened | 4x16(C) | — | 5DG5487 | 5.6 | 12.8–14.4 | 40.2–43.2 | 72 | 1360 | 960 | 1.21 | 104 | 2.29 |
| (N)GFLGOEU-J power, screened | 4x25(C) | — | 5DG5488 | 6.6 | 14.8–16.8 | 47.3–50.3 | 84 | 1980 | 1500 | 0.78 | 138 | 3.58 |
| (N)GFLGOEU-J power, screened | 4x35(C) | — | 5DG5489 | 8.1 | 16.9–18.9 | 53.4–57.4 | 95 | 2590 | 2100 | 0.55 | 170 | 5.01 |
| (N)GFLGOEU-J power, screened | 4x50(C) | — | 5DG5490 | 9.5 | 19.5–21.5 | 62–66 | 108 | 3590 | 3000 | 0.39 | 212 | 7.15 |
| (N)GFLGOEU-J power, screened | 4x70(C) | — | 5DG5491 | 11.1 | 21.9–23.9 | 69.8–73.8 | 120 | 4630 | 4200 | 0.27 | 263 | 10.01 |
| (N)GFLGOEU-J power, screened | 4x95(C) | — | 5DG5492 | 12.9 | 24.2–27.2 | 78.7–83.7 | 136 | 5950 | 5700 | 0.21 | 316 | 13.59 |
Standards
Standards and Source-Listed Approvals
| Type designation | NGFLGOEU-J / NGFLGOEU-O |
|---|---|
| Design standard | DIN VDE 0250-809 |
| Source-listed marking / approvals | VDE marking; UL File E 113313; GOST-R |
| Insulation material reference | DIN VDE 0207 Part 20, compound 3GI3 |
| Sheath material reference | DIN VDE 0207 Part 21, compound 5GM3 |
| Current-carrying reference | DIN VDE 0298-4 |
| Oil-resistance reference | DIN VDE 0473-404, paragraph 10 |
| Bending-radius reference | DIN VDE 0298 Part 3 |
| Additional source-listed test | Bending test |
