Deepwater High-Load Hybrid Fiber Optic Cable

Deepwater High-Load Hybrid Fiber Optic Cable brings 4 selectable construction options together for deepwater-equipment, ROV and offshore-system engineering teams. Compare the complete signal, electrical and mechanical requirement before choosing a configuration.

  • Selection focus: compare high-load electro-optical constructions for deepwater equipment, ROV and offshore systems
  • Available configurations: 4
  • Mechanical inputs: cable length, working load, drum, sheave, routing and deployment cycle
  • Quotation inputs: services, environment, termination, quantity and required inspection documents
SKU: 6SSA18/8SSA25/23SSA33/24SSA28 Category: Brand:
Product information
SKU
6SSA18/8SSA25/23SSA33/24SSA28
Brand
TEBAOFLEX
Product overview

Deepwater High-Load Hybrid Fiber Optic Cable selection overview

The Deepwater High-Load Hybrid Fiber Optic Cable gives deepwater-equipment, ROV and offshore-system engineering teams one clear route for comparing 4 available constructions. It is designed to compare high-load electro-optical constructions for deepwater equipment, ROV and offshore systems. Keeping the options in one product group makes it easier to compare signal architecture, conductor or fibre content, armour, diameter, mechanical load and bend geometry without switching between separate product pages.

Selection starts with the equipment interface: define voltage and current, signal type and frequency, coaxial impedance and allowable attenuation, or fibre type, count and wavelength as applicable. Then define whether the cable will be static, suspended, reeled, towed or repeatedly deployed. Cable length, working load, breaking-load criterion, drum and sheave dimensions, temperature, water environment, abrasion, buoyancy and the connector or moulded termination must be reviewed as one system.

  • Compare: construction, transmission values, outside diameter, load and bend data shown for each option.
  • Confirm: the complete service combination and the operating values that apply at the required cable length.
  • Specify: inspection stages, test methods, acceptance values, marking and documentation in the quotation.

Use the related subsea and marine cable selection page for the wider application route, or send your equipment and deployment requirements for an engineering review.

Construction

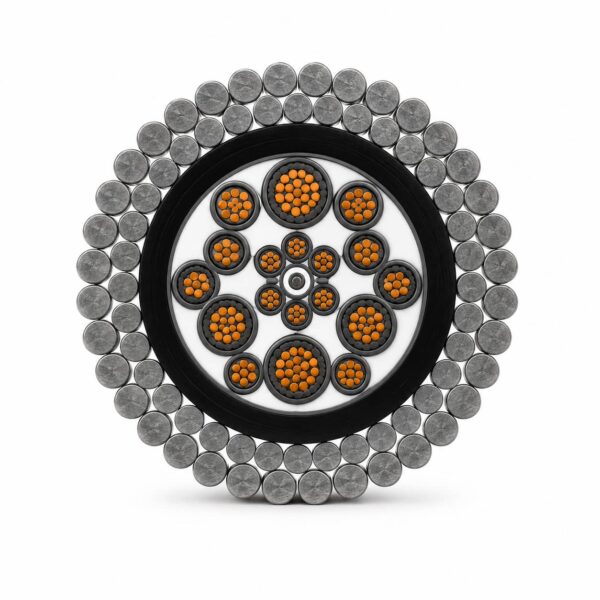

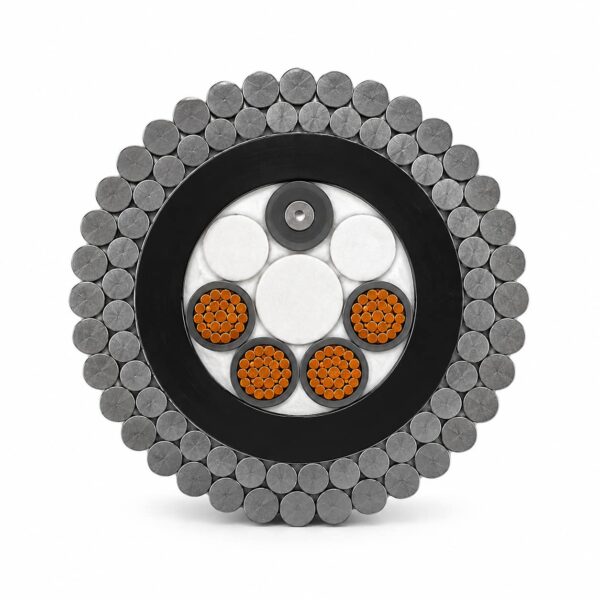

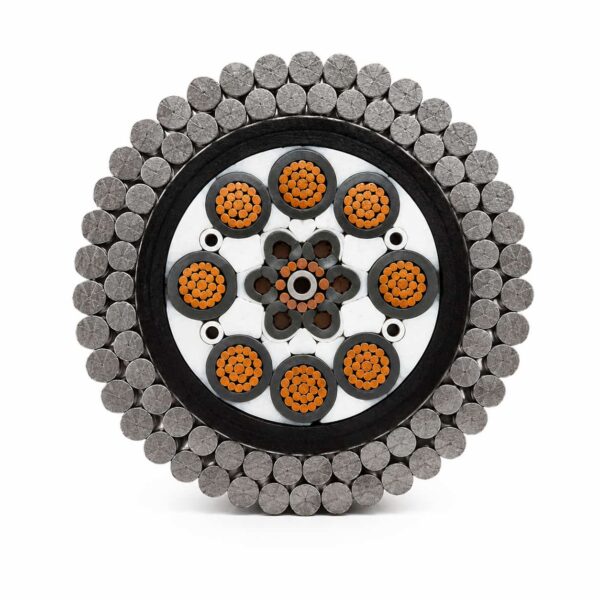

Deepwater High-Load Hybrid Fiber Optic Cable construction options

Compare the complete layer sequence for each option. Conductor or fibre elements, insulation, screening, fillers, bedding, strength members, armour and outer sheath are selected together to suit the transmission and deployment duty.
ConfigurationConstruction

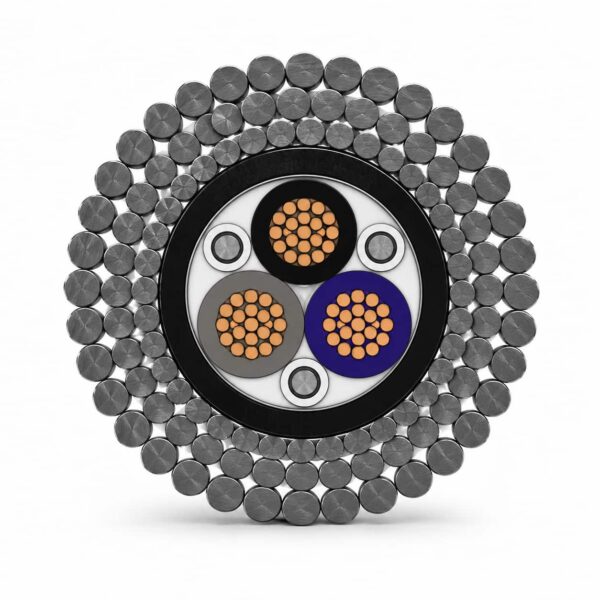

Triple-armoured three-fiber power configuration3 × 11 AWG + 3 × FIMT single-mode fibers; silicone waterblocking; three armour layers
Four fibers plus four 4.00 mm² power cores4 × 4.00 mm² + 4 × 9/125 fibers in stainless-steel tube; waterblocking; stainless-steel armour
Six-fiber multi-power and signal configuration6 × 9/125 fibers + 0.50/1.00/4.00 mm² circuits and screened pairs; waterblocking; contra-helical armour
Six-fiber 1000 m reference configuration6 × 9/125 fibers + multiple 18/20 AWG circuits; screened; PUR; galvanized steel armour

Construction selection

Armour material and lay, sheath material, waterblocking, screening and fibre protection are matched to corrosion exposure, abrasion, repeated bending, handling load and termination design. The armour anchoring and connector or moulded transition are reviewed with the cable because they control how load and water sealing are transferred into the equipment.
Applications

Applications for Deepwater High-Load Hybrid Fiber Optic Cable

This product group supports deepwater-equipment, ROV and offshore-system engineering teams where transmission performance and mechanical deployment duty must be selected together.
  • Deepwater equipment, ROV and offshore systems requiring combined electrical and optical services with high mechanical load capacity.
  • Winch, tether-management or suspended routes only after working load, bend geometry, length, termination and project test plan are defined.
  • A stated depth applies only to the exact referenced configuration and compatible termination system; it cannot be transferred across variants.

Information needed for selection

Provide the equipment, cable length, service voltages or signals, load criterion, winch and sheave dimensions, deployment method, water environment, temperature, buoyancy target, connector or moulding interface and required inspection documents.
Specifications

Deepwater High-Load Hybrid Fiber Optic Cable specifications

Use the stated values to compare complete configuration options. Empty properties are omitted instead of being estimated, and each numerical value stays with the construction under which it is listed.

Triple-armoured three-fiber power configuration

Construction3 × 11 AWG + 3 × FIMT single-mode fibers; silicone waterblocking; three armour layers
Voltage / test value2800 Vdc
Optical attenuation0.70 dB/km @ 1310 and 1550 nm
Outside diameter17.35 mm
Breaking load205 kN
Working load55 kN
Dynamic bend radius350 mm
Temperature-30 to +80°C

Four fibers plus four 4.00 mm² power cores

Construction4 × 4.00 mm² + 4 × 9/125 fibers in stainless-steel tube; waterblocking; stainless-steel armour
Voltage / test value0.6/1 kV
Optical attenuation< 1.0 dB/km @ 1310 and 1550 nm
Outside diameter22.40 mm
Breaking load205 kN
Working load51 kN
Static bend radius335 mm
Dynamic bend radius460 mm
Temperature-30 to +80°C

Six-fiber multi-power and signal configuration

Construction6 × 9/125 fibers + 0.50/1.00/4.00 mm² circuits and screened pairs; waterblocking; contra-helical armour
Voltage / test value380 Vac / 440 Vac / 1000 Vac by circuit
Optical attenuation< 1.0 dB/km @ 1310 and 1550 nm
Outside diameter26.80 mm
Breaking load280 kN
Working load70 kN
Static bend radius265 mm
Dynamic bend radius530 mm
Temperature-20 to +70°C

Six-fiber 1000 m reference configuration

Construction6 × 9/125 fibers + multiple 18/20 AWG circuits; screened; PUR; galvanized steel armour
Voltage / test value600 Vac; 1500 Vdc withstand × 1 min
Optical attenuation< 1.0 dB/km @ 1310 and 1550 nm
Outside diameter18.80 mm
Breaking load150 kN
Working load37.5 kN
Static bend radius190 mm
Dynamic bend radius380 mm
Temperature-40 to +90°C
DepthUp to 1000 m

Using the values

Breaking load is not the normal operating load. Bend values must match drums, sheaves, guides and connector exits. A voltage entry that includes a duration is a dielectric test value rather than a continuous rated voltage. Confirm the applicable operating and acceptance values in the quotation.
Standards

Standards and test references

The applicable references are selected for the confirmed cable construction and project duty. They provide a framework for engineering and inspection rather than a one-size-fits-all cable designation.
  • IEC 60794-1-2:2021: General guidance for optical-fibre cable tests, including cables that combine optical fibres and electrical conductors.
  • IEC 60794-1-21 / IEC 60794-1-22: Mechanical and environmental test-method families for optical and hybrid optical cables.
  • IEC 60793-2-50 and ITU-T G.652: Single-mode optical-fibre characteristics when G.652-type fibre is specified.
  • Project test plan: Defines optical wavelengths, attenuation method, tensile load, bending, temperature, water exposure, electrical checks and termination acceptance.
Final test conditions, sample lengths, conditioning, acceptance values, marking and report format are defined in the quotation and inspection plan.
