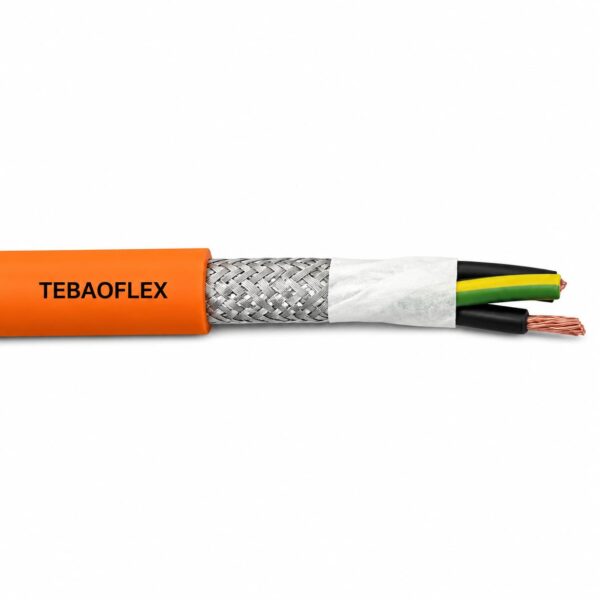

FD 600/1000 V Shielded Servo Cable

FD 600/1000 V Shielded Servo Cable Family

FD70750 P, FD75781-CY and FD80785 P are screened 600/1000 V constructions for converter-motor and automation power circuits. They share a voltage and screened-duty intent, but their materials are different: FD70750 P uses PVC or TPE control-core options with a PUR outer sheath; FD75781-CY uses PP insulation, a tinned-copper braid and a special PVC TM5 outer sheath; FD80785 P uses TPE insulation and a gray PUR sheath.

This page is a family comparison for buyers who already know the FD marking and voltage class. It is not a blanket PUR specification. Choose by core arrangement, screen design, sheath material, temperature, bend radius and any documented UV or environmental requirement. The selected model row and size table control the final order.

• Choose by construction: FD75781-CY is the PVC-sheathed CY option; FD80785 P is the low-temperature TPE/PUR option.
• Choose by movement: the listed flexible and fixed bend values differ by model.
• Provide for RFQ: drive voltage, conductor schedule, model marking, size, length and route conditions.

For 300/500 V FD control cables, use the FD 300/500 V family.

Construction

All three rows are screened, but the layer descriptions are not identical. The model evidence is kept separate so the family page does not create a common-material claim.

Applications

• Converter-motor power and automation machine cabling.
• OEM replacement enquiries that provide the existing model marking and size.
• Dry, damp or wet interior routes within the selected model temperature and environmental limits.

Specify the drive system, voltage, conductor arrangement, bend radius, temperature, UV option and sheath requirement. For a different VFD construction, compare the Type P VFD cable after checking voltage and screen requirements.

Specifications

Standards

• FD70750 P: adapted VDE 0250/0281/0282, EN 60228 class 6 and EN 60332-1-2 references; ASTM G154 where the selected UV sheet states it.
• FD75781-CY: EN 50525-2-51, EN 60228 class 6, EN 50363-4-1 and EN 60332-1-2 references; ASTM G154 where the selected UV sheet states it.
• FD80785 P: DIN VDE 0250/0281/0282 and EN 60332-1-2 references.

The quotation record identifies the selected model, size and applicable inspection documentation.
