H01N2-D / H01N2-E Welding Cable 100/100 V
H01N2-D / H01N2-E 100/100 V welding cable for high-current arc-welder secondary leads.
- H01N2-D normal-flexibility and H01N2-E higher-flexibility versions
- Fine-stranded copper conductor
- Flexible EM5 rubber covering
- EN 50525-2-81 reference
- Size selection based on current, duty cycle, circuit length, and voltage drop
H01N2-D / H01N2-E Welding Cable 100/100 V
H01N2-D and H01N2-E are flexible single-core rubber welding cables designed to carry high current between an arc-welding power source and the electrode holder or workpiece connection. Both belong to the 100/100 V EN 50525-2-81 family. Specify H01N2-D for normal-flexibility welding cable or H01N2-E when the project requires a higher-flexibility version, then confirm the actual conductor construction in the technical quotation.
Choose the conductor cross-section according to welding current, duty cycle, total outgoing and return circuit length, ambient temperature, and acceptable voltage drop. A short intermittent-duty lead and a long continuous-duty lead may require different conductor sizes even when peak current is the same. Flexible welding cable should not be treated as general-purpose fixed power wiring solely because it has a large copper cross-section.
Final sizing must be confirmed against the cable guidance supplied by the welding-machine manufacturer.
- Typical use: Electrode leads, work-return leads, and mobile welding equipment.
- Before ordering: State current, duty cycle, length, size, terminals, flexibility grade, and environment.
- Termination check: Match lug barrels, crimp tooling, connectors, and strain relief to the fine-stranded conductor.
When the specification calls for WCT instead of the harmonized H01N2 family, compare the JIS-based WCT welding cable.
Construction

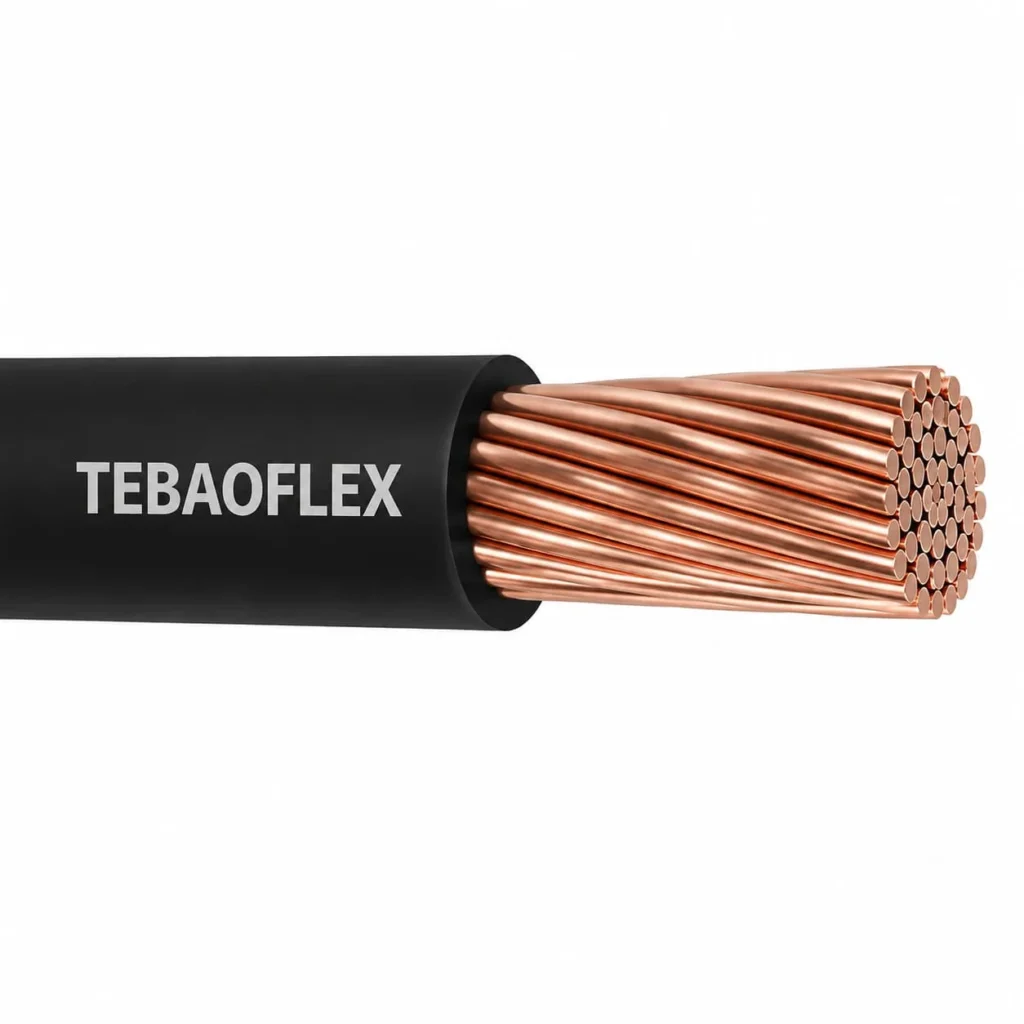

H01N2-D / H01N2-E is a flexible single-core welding cable construction. The E version uses a finer, more flexible conductor arrangement than the D version; exact strand count and finished dimensions depend on conductor size and the quoted construction.
| Element | Reference construction | Procurement relevance |
|---|---|---|
| Conductor | Fine-stranded annealed copper; bare or tinned copper may be selected according to the agreed construction. | Confirm D- or E-type flexibility, nominal cross-section, and termination compatibility. |
| Separator | Suitable separator layer over the flexible conductor | Supports processing and movement between the conductor and covering. |
| Covering | Flexible EM5 rubber compound, typically black | Specify required oil, abrasion, flame, outdoor-use, and temperature performance. |
| Identification | Order marking to include the type, size, and required traceability | Provide target-market and project marking instructions. |
Applications

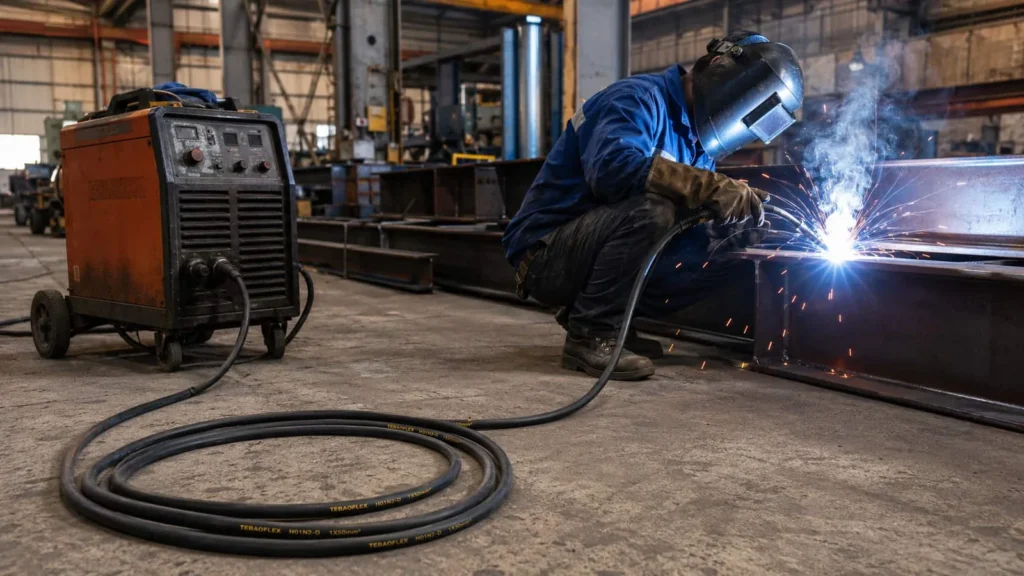

Use H01N2-D / H01N2-E in arc-welding secondary circuits where a highly flexible, high-current lead is required between the welding equipment and the electrode holder or work clamp.
- Manual electrode welding leads
- Work-return or ground-clamp leads
- Automatic welding equipment and mobile production machinery
- Replacement leads with verified H01N2-D or H01N2-E marking
Do not use a 1,000 V dielectric test value as the operating voltage: this cable family is rated 100/100 V. This page does not state suitability for fixed building wiring, battery systems, electric-vehicle charging, or unrelated power-distribution applications. Review any non-welding use against the applicable installation standard.
H01N2-D / H01N2-E Technical Specifications
Rated voltage: 100/100 V| Nominal cross-section mm² | Copper factor kg/km | Overall diameter (approx.) mm | Net weight (approx.) kg/km | Conductor DC resistance at 20 °C Ω/km | Continuous current capacity on surface A | Delivery length (approx.) m |
|---|---|---|---|---|---|---|
| 10 | 96 | 8.4 | 146 | 1.910 | 100 | 1000 |
| 16 | 154 | 9.6 | 208 | 1.210 | 135 | 1000 |
| 25 | 240 | 10.7 | 291 | 0.780 | 180 | 1000 |
| 35 | 336 | 12.2 | 394 | 0.554 | 225 | 1000 |
| 50 | 480 | 14.7 | 557 | 0.386 | 285 | 1000 |
| 70 | 672 | 16.8 | 741 | 0.272 | 355 | 1000 |
| 95 | 912 | 19.3 | 1,013 | 0.206 | 430 | 1000 |
| 120 | 1,152 | 20.2 | 1,256 | 0.161 | 500 | 1000 |
| 150 | 1,440 | 23.6 | 1,653 | 0.129 | 580 | 1000 |
Current Carrying Capacity by Duty Cycle
| Nominal cross-section mm² | Continuous operation 100% duty, A | Interrupted operation 85% duty, A | Interrupted operation 60% duty, A | Interrupted operation 35% duty, A |
|---|---|---|---|---|
| 10 | 100 | 103 | 108 | 122 |
| 16 | 135 | 145 | 175 | 230 |
| 25 | 180 | 195 | 230 | 300 |
| 35 | 225 | 245 | 290 | 375 |
| 50 | 285 | 305 | 365 | 480 |
| 70 | 355 | 385 | 460 | 600 |
| 95 | 430 | 470 | 560 | 730 |
| 120 | 500 | 540 | 650 | 850 |
| 150 | 580 | 630 | 750 | 980 |
Standards
| EN 50525-2-81 | Reference for H01N2-D and H01N2-E arc-welding cable types. |
|---|---|
| EN 50363-2-2 | Reference for the flexible EM5 rubber covering compound. |
| EN / IEC 60332-1-2 | A single-cable flame test may be specified; confirm the ordered product scope and test evidence. |
| Order documentation | Datasheet, conductor and dimension schedule, marking, routine test report, and required inspection records. |
