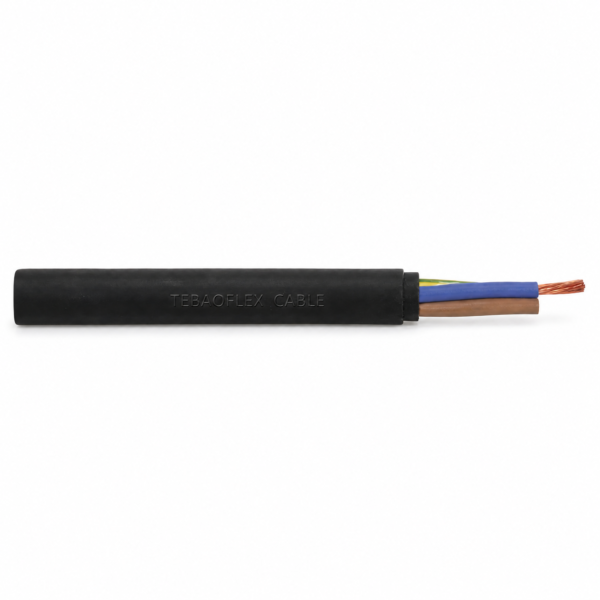

NGRDGöu 0.6/1 kV Round Festoon Cable square overall view with black outer sheath

Port & Festoon Cables TEBAOFLEX

(N)GRDGOEU-J/-O 0.6/1 kV Round Festoon Cable

(N)GRDGOEU-J/-O is a 0.6/1 kV round festoon power, control and bus cable family for cranes, hoists, material-handling equipment and moving machine connections.

Flexible bare copper conductors, class 5
EPR insulation and black PCP 5GM3 outer sheath
Single-core, split-earth, 4-core, 5-core, multicore control and screened-pair bus configurations
Mobile temperature range: −35 to +80 °C
Festoon travel speed reference: up to 240 m/min

Send the exact model suffix, core configuration, route geometry, length and documentation requirements for quotation.

Product information

Category: Port & Festoon Cables
Brand: TEBAOFLEX

Product overview

(N)GRDGOEU Festoon Cable for Power, Control and Bus Circuits

(N)GRDGOEU-J/-O is a 0.6/1 kV flexible round festoon cable family for moving power and control connections on cranes, hoists, material-handling systems, transport equipment and machine tools. Buyers may also encounter the designation as NGRDGOEU or NGRDGÖU; the J and O suffixes must still be matched to the required protective-conductor arrangement.

This page keeps the verified single-core, split-earth power, 4-core, 5-core, multicore control and screened-pair bus configurations together. That lets a procurement engineer compare an exact variant such as (N)GRDGOEU-O 1 × 70 mm² or (N)GRDGOEU-J 30 × 2.5 mm² without creating thin size-only pages.

Use this family for: supported festoon loops and flexible machine connections subject to frequent bending.
Choose the suffix carefully: J identifies a construction with a green/yellow protective conductor; O identifies a construction without it.
Confirm before ordering: circuit function, exact core arrangement, cable support, bend radius, travel speed and termination layout.
Screening: individually screened cores or pairs are available only in the source-listed bus configurations; an overall-screened drive cable is a different model family.

Browse the Port & Festoon Cable range or review the crane cable selection guide when the movement method or EMC requirement is not yet fixed.

Construction

(N)GRDGOEU Cable Construction

The (N)GRDGOEU festoon cable uses a round, flexible rubber construction for repeated movement. The exact core lay-up changes with the selected power, control or bus configuration.

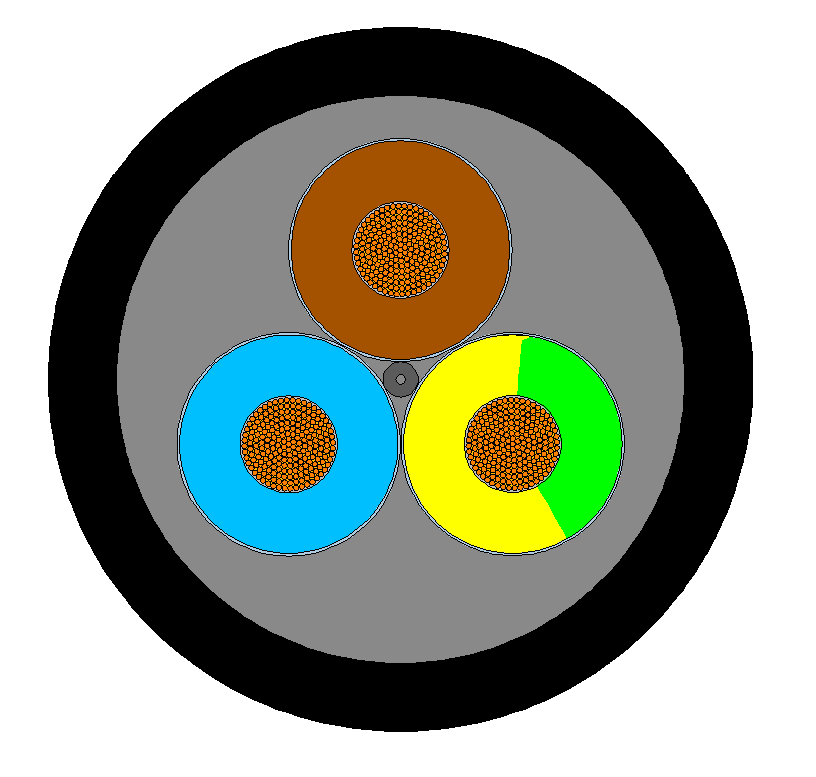

(N)GRDGOEU cable cross-section showing round festoon construction — Round (N)GRDGOEU cable cross-section; the final core and screen arrangement follows the selected configuration.

Verified (N)GRDGOEU construction
Element	Construction	Selection relevance
Conductor	Bare electrolytic copper, finely stranded, class 5	Supports flexible festoon and moving-machine connections.
Insulation	High-grade EPR compound, at least 3GI3	Electrical insulation for the verified 0.6/1 kV family.
Core identification	Light-coloured insulation with black numbering; protective conductor green/yellow	Match J or O suffix and terminal schedule before manufacture.
Individual screen where specified	Tinned-copper wire braid; at least 60% coverage for individually screened cores and at least 80% for twisted screened pairs	Applies only to source-listed screened core/pair configurations, not every variant.
Core arrangement	Laid up in a maximum of three layers	Maintains a round cable profile across multicore configurations.
Inner sheath	EPR rubber compound GM1b, black	Provides a bedding layer beneath the outer sheath.
Outer sheath	PCP-based rubber compound, at least 5GM3, black	Source-listed for outdoor and industrial festoon duty.

Applications

(N)GRDGOEU Festoon Cable Applications

(N)GRDGOEU-J/-O is used for flexible low-voltage power and control connections on festoon systems and moving machine parts where the cable is supported in loops and bends repeatedly during operation.

(N)GRDGOEU round festoon cable application on a port crane system — Typical crane festoon environment; final cable selection depends on the trolley geometry and operating duty.

Gantry, hall and container-crane festoon systems
Hoists, lifting equipment and trolley power supplies
Rack and general material-handling equipment
Transport systems and movable machine-tool connections
Multicore festoon control circuits and screened-pair bus routes listed in the Specifications tab

Selection boundaries

Confirm that the cable will operate in a supported festoon arrangement. Reeling onto a powered drum, unsupported vertical travel or continuous torsion can require a different construction. Where the route needs an overall copper screen for a frequency-converter motor supply, review the (N)GRDGCGOEU-J screened festoon cable. Provide the trolley type, loop depth, travel length, speed, acceleration, bend radius and termination arrangement for engineering review.

Specifications

(N)GRDGOEU-J/-O Specifications and Exact Sizes

The model is also searched as NGRDGOEU and NGRDGÖU. Each row below uses the official (N)GRDGOEU-J or (N)GRDGOEU-O designation plus the verified configuration, so buyers can identify the exact orderable variant. German catalogue notation may use G for a J-type configuration, for example 30 G 2.5; the source table below retains the core-count format.

General (N)GRDGOEU technical ratings
Parameter	Verified value
Rated voltage U₀/U	0.6/1 kV
Maximum permissible operating voltage, AC	0.7/1.2 kV
Maximum permissible operating voltage, DC	0.9/1.8 kV
AC test voltage	3.5 kV for 5 minutes
Maximum conductor temperature	+90 °C
Maximum short-circuit conductor temperature	+250 °C
Ambient temperature, fixed	−50 to +80 °C
Ambient temperature, fully flexible	−35 to +80 °C
Maximum tensile load on conductor	15 N/mm²
Torsional stress	±25°/m
Festoon travel speed	Up to 240 m/min; consult the manufacturer above 240 m/min
Reeling-operation reference	60 m/min

Single-core power cable — O type

(N)GRDGOEU-O single-core power cable sizes
Exact model and configuration	Outer Ø min.–max. (mm)	Min. free-moving bend radius (mm)	Approx. weight (kg/km)	Max. tensile force (N)	Max. conductor resistance at 20 °C (Ω/km)	Current capacity in free air (A)	Short-circuit current (kA)
(N)GRDGOEU-O 1 × 25 mm²	11.4–12.6	63	330	370	0.78	138	3.58
(N)GRDGOEU-O 1 × 35 mm²	12.3–13.9	70	430	520	0.55	170	5.01
(N)GRDGOEU-O 1 × 50 mm²	15.0–16.6	83	620	750	0.39	212	7.15
(N)GRDGOEU-O 1 × 70 mm²	16.3–18.3	92	830	1050	0.27	263	10.01
(N)GRDGOEU-O 1 × 95 mm²	18.5–20.5	103	1070	1420	0.21	316	13.59
(N)GRDGOEU-O 1 × 120 mm²	20.3–22.3	112	1330	1800	0.16	370	17.16
(N)GRDGOEU-O 1 × 150 mm²	22.7–24.7	124	1640	2250	0.13	424	21.45
(N)GRDGOEU-O 1 × 185 mm²	24.6–27.6	138	2010	2770	0.11	484	26.46
(N)GRDGOEU-O 1 × 240 mm²	28.9–31.9	160	2650	3600	0.08	567	34.32

Three power cores with split protective conductor — J type

(N)GRDGOEU-J split-earth power cable sizes
Exact model and configuration	Outer Ø min.–max. (mm)	Min. free-moving bend radius (mm)	Approx. weight (kg/km)	Max. tensile force (N)	Max. conductor resistance at 20 °C (Ω/km)	Current capacity in free air (A)	Short-circuit current (kA)
(N)GRDGOEU-J 3 × 35 + 3 × 16/3 mm²	27.3–30.3	152	1780	1570	0.55	170	5.01
(N)GRDGOEU-J 3 × 50 + 3 × 25/3 mm²	33.0–36.0	180	2570	2250	0.39	212	7.15
(N)GRDGOEU-J 3 × 70 + 3 × 35/3 mm²	38.9–41.9	210	3570	3150	0.27	263	10.01

Four-core power cable — J type

(N)GRDGOEU-J four-core power cable sizes
Exact model and configuration	Outer Ø min.–max. (mm)	Min. free-moving bend radius (mm)	Approx. weight (kg/km)	Max. tensile force (N)	Max. conductor resistance at 20 °C (Ω/km)	Current capacity in free air (A)	Short-circuit current (kA)
(N)GRDGOEU-J 4 × 4 mm²	13.6–15.2	76	350	240	4.95	43	0.57
(N)GRDGOEU-J 4 × 6 mm²	15.9–17.9	90	480	360	3.30	56	0.86
(N)GRDGOEU-J 4 × 10 mm²	18.0–20.0	100	680	600	1.91	78	1.43
(N)GRDGOEU-J 4 × 16 mm²	23.3–25.3	127	1110	960	1.21	104	2.29
(N)GRDGOEU-J 4 × 25 mm²	26.9–29.9	150	1610	1500	0.78	138	3.58
(N)GRDGOEU-J 4 × 35 mm²	30.1–33.1	166	2100	2100	0.55	170	5.01
(N)GRDGOEU-J 4 × 50 mm²	36.1–39.1	196	3010	3000	0.39	212	7.15

Five-core power cable — J type

(N)GRDGOEU-J five-core power cable sizes
Exact model and configuration	Outer Ø min.–max. (mm)	Min. free-moving bend radius (mm)	Approx. weight (kg/km)	Max. tensile force (N)	Max. conductor resistance at 20 °C (Ω/km)	Current capacity in free air (A)	Short-circuit current (kA)
(N)GRDGOEU-J 5 × 4 mm²	15.7–17.7	89	450	300	4.95	43	0.57
(N)GRDGOEU-J 5 × 6 mm²	17.5–19.5	98	580	450	3.30	56	0.86
(N)GRDGOEU-J 5 × 10 mm²	20.2–22.2	111	860	750	1.91	78	1.43
(N)GRDGOEU-J 5 × 16 mm²	24.5–27.5	138	1340	1200	1.21	104	2.29
(N)GRDGOEU-J 5 × 25 mm²	29.9–32.9	165	1990	1870	0.78	138	3.58
(N)GRDGOEU-J 5 × 35 mm²	34.7–37.7	189	2700	2620	0.55	170	5.01

Multicore control cable — J type

(N)GRDGOEU-J control cable sizes, including 30 × 2.5 mm² festoon control cable
Exact model and configuration	Outer Ø min.–max. (mm)	Min. free-moving bend radius (mm)	Approx. weight (kg/km)	Max. tensile force (N)	Max. conductor resistance at 20 °C (Ω/km)	Current capacity in free air (A)	Short-circuit current (kA)
(N)GRDGOEU-J 12 × 1.5 mm²	16.2–18.2	91	460	270	13.3	24	0.21
(N)GRDGOEU-J 18 × 1.5 mm²	18.7–20.7	104	630	400	13.3	24	0.21
(N)GRDGOEU-J 24 × 1.5 mm²	22.1–24.1	121	840	540	13.3	24	0.21
(N)GRDGOEU-J 30 × 1.5 mm²	23.3–25.3	127	950	670	13.3	24	0.21
(N)GRDGOEU-J 36 × 1.5 mm²	24.6–27.6	138	1090	810	13.3	24	0.21
(N)GRDGOEU-J 4 × 2.5 mm²	11.8–13.4	67	250	150	7.98	32	0.36
(N)GRDGOEU-J 7 × 2.5 mm²	15.3–17.4	87	430	260	7.98	32	0.36
(N)GRDGOEU-J 12 × 2.5 mm²	18.0–20.0	100	600	450	7.98	32	0.36
(N)GRDGOEU-J 18 × 2.5 mm²	21.5–23.5	118	870	670	7.98	32	0.36
(N)GRDGOEU-J 24 × 2.5 mm²	24.0–27.0	135	1140	900	7.98	32	0.36
(N)GRDGOEU-J 30 × 2.5 mm²	26.4–29.4	147	1360	1120	7.98	32	0.36
(N)GRDGOEU-J 36 × 2.5 mm²	28.7–31.7	159	1550	1350	7.98	32	0.36
(N)GRDGOEU-J 24 × 3.5 mm²	34.6–37.6	188	2160	1260	5.55	41	0.50
(N)GRDGOEU-J 30 × 3.5 mm²	36.4–39.4	197	2450	1570	5.55	41	0.50

Screened-pair bus cable — O type

(N)GRDGOEU-O screened-pair bus cable sizes
Exact model and configuration	Outer Ø min.–max. (mm)	Min. free-moving bend radius (mm)	Approx. weight (kg/km)	Max. tensile force (N)	Max. conductor resistance at 20 °C (Ω/km)	Current capacity in free air (A)	Short-circuit current (kA)
(N)GRDGOEU-O 3 × (2 × 1 mm²)C	20.8–22.8	114	690	90	19.5	19	0.14
(N)GRDGOEU-O 6 × (2 × 0.5 mm²)C	21.6–24.6	123	800	90	39.0	11	0.07
(N)GRDGOEU-O 6 × (2 × 1 mm²)C	27.0–30.2	151	1230	180	19.5	19	0.14
(N)GRDGOEU-O 9 × (2 × 0.5 mm²)C	28.3–31.3	157	1340	130	39.0	11	0.07
(N)GRDGOEU-O 9 × (2 × 1 mm²)C	35.3–38.3	192	1930	270	19.5	19	0.14
(N)GRDGOEU-O 12 × (2 × 0.5 mm²)C	29.8–32.8	164	1540	180	39.0	11	0.07
(N)GRDGOEU-O 12 × (2 × 1 mm²)C	36.3–39.3	197	2020	360	19.5	19	0.14
(N)GRDGOEU-O 12 × 1 mm²(C)	17.6–19.6	98	540	180	19.5	19	0.14

Current-carrying capacities are the source-listed references for rubber cables installed free in air at 30 °C ambient. Dimensions and weights are approximate source values; confirm the final production drawing, installation conditions and applicable current-rating method before ordering.

Standards

(N)GRDGOEU Standards and Service References

The following references are listed for the supplied (N)GRDGOEU-J/-O cable family.

Standards, approvals and environmental references
Item	Source-listed reference
Product design	Based on DIN VDE 0250-814
Conductor class	Class 5; DIN VDE 0295 reference
Current-carrying capacity	DIN VDE 0298-4 reference: single-core table 15 column 2; multicore table 15 column 4
Minimum bending radius	According to DIN VDE 0298-3
Core identification	DIN VDE 0293 reference
Approvals listed in source	VDE Reg. No. 7841; GOST-R
Oil resistance	DIN EN 60811-404 and DIN VDE 0473-811-404, paragraph 10
Weather resistance	Outdoor and indoor use; resistant to ozone, UV and moisture

State the required standard edition, approval documentation, inspection scope and cable marking in the enquiry.
