(N)SHOEU 0.6/1kV Mining Rubber Flexible Cable
(N)SHOEU 0.6/1kV Mining Rubber Flexible Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. Application in explosion-hazard areas is mentioned in the supplied data, but project approval still depends on the complete installation, equipment protection concept and local rules. Do not treat the cable description alone as Ex certification for a complete system. The following values support cable entry, drum, suspension, pulling and current-rating checks. Send the exact size, length, installation duty and documentation requirements for a technical quotation.
(N)SHOEU 0.6/1kV Mining Rubber Flexible Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. Application in explosion-hazard areas is mentioned in the supplied data, but project approval still depends on the complete installation, equipment protection concept and local rules. Do not treat the cable description alone as Ex certification for a complete system. The following values support cable entry, drum, suspension, pulling and current-rating checks. Current-carrying capacity and short-circuit current must still be verified against installation method, ambient temperature, grouping and project standards. (N)SHOEU is a 0.6/1 kV rubber-sheathed flexible cable for mining, tunneling, conveyor systems, material-handling equipment, winding drum cars and submersible pump connections. It uses Class 5 bare copper conductors, EPR-based insulation and a yellow 5GM5 chlorinated-rubber outer sheath for demanding industrial and underground service. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested (N)SHOEU 0.6/1kV Mining Rubber Flexible Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together.

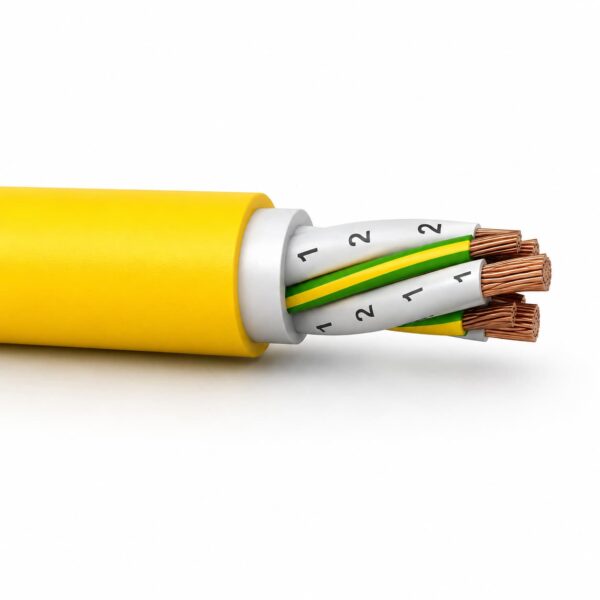

(N)SHOEU 0.6/1kV Mining Rubber Flexible Cable construction
Cable Construction
- Conductor: Bare electrolytic copper, finely stranded Class 5.
- Insulation: EPR-based special compound, material performance better than 3GI3.
- Core identification: Light grey cores with black digits; -J versions include green/yellow protective conductor.
- Optional screen: For KON concentric-screen versions only, closed copper-wire spinning may be applied over the core assembly.
- Inner sheath: EPR-based special compound.
- Outer sheath: Yellow chlorinated-rubber special compound, 5GM5 type.
(N)SHOEU 0.6/1kV Mining Rubber Flexible Cable applications
Application in explosion-hazard areas is mentioned in the supplied data, but project approval still depends on the complete installation, equipment protection concept and local rules. Current-carrying capacity and short-circuit current must still be verified against installation method, ambient temperature, grouping and project standards.
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
(N)SHOEU 0.6/1kV Mining Rubber Flexible Cable specifications
The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.
Dimensions and Electrical Data
The following values support cable entry, drum, suspension, pulling and current-rating checks. Current-carrying capacity and short-circuit current must still be verified against installation method, ambient temperature, grouping and project standards.
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Product Type | 0.6/1 kV mining rubber flexible cable |
| Model | (N)SHOEU / (N)SHÖU equivalent search variant |
| Rated Voltage | 0.6/1 kV (600/1000 V) |
| Maximum AC Operating Voltage | 0.7/1.2 kV |
| Maximum DC Operating Voltage | 0.9/1.8 kV |
| AC Test Voltage, Main Cores | 3.5 kV, 5 minutes |
| AC Test Voltage, Control Cores | 2 kV |
| Maximum Conductor Temperature | 90°C |
| Maximum Short-Circuit Temperature | 250°C |
| Maximum Water Temperature | 40°C; higher water temperatures may shorten cable service life |
| Fixed Ambient Temperature | -40°C to +80°C |
| Fully Flexible Ambient Temperature | -25°C to +60°C |
| Maximum Water Depth | 500 m |
| Minimum Bending Radius | According to DIN VDE 0298-3 |
| Maximum Tensile Load on Conductor | 15 N/mm² |
| Torsional Stress | ±100°/m |
| Travel Speed on Winding Drum Car | 60 m/min maximum |
| Outer Sheath Colour | Yellow |
| Construction Standard | Based on DIN VDE 0250 Part 812 |
| Installation Reference | DIN VDE 0298-3 |
| Factory Surveillance | VDE certificate with factory surveillance stated in source data |
| Flame Performance | IEC 60332-1-2 |
| Oil Resistance | IEC 60811-404 |
| Weather Resistance | Unrestricted indoor and outdoor use; resistant to ozone and moisture |
| Water Resistance | EN 50525-2-21 |
| Type | Part No. | Size | Conductor Dia. Max. (mm) | OD Min.-Max. (mm) | Weight (kg/km) | Tensile Force Max. (N) | DC Resistance 20°C (Ω/km) | Capacitance (µF/km) | Inductance (mH/km) | Current (A) | Short-Circuit Current (kA) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (N)SHOEU-O | 20265363 | 1 × 16 | 5.2 | 9.5-11.1 | 230 | 240 | 1.21 | 0.44 | 0.26 | 99 | 2.29 |
| (N)SHOEU-O | 20265364 | 1 × 25 | 6.4 | 11.0-12.6 | 335 | 375 | 0.78 | 0.45 | 0.26 | 131 | 3.58 |
| (N)SHOEU-O | 20265365 | 1 × 35 | 7.5 | 12.3-13.9 | 435 | 525 | 0.554 | 0.52 | 0.25 | 162 | 5.01 |
| (N)SHOEU-O | 20265366 | 1 × 50 | 9.0 | 14.5-16.5 | 615 | 750 | 0.386 | 0.54 | 0.25 | 202 | 7.15 |
| (N)SHOEU-O | 20265367 | 1 × 70 | 11.1 | 16.4-18.4 | 830 | 1050 | 0.272 | 0.61 | 0.24 | 250 | 10.01 |
| (N)SHOEU-O | 20265369 | 1 × 95 | 12.8 | 18.5-20.5 | 1060 | 1425 | 0.206 | 0.64 | 0.24 | 301 | 13.59 |
| (N)SHOEU-O | 20265370 | 1 × 120 | 14.5 | 20.4-22.4 | 1300 | 1800 | 0.161 | 0.72 | 0.23 | 352 | 17.16 |
| (N)SHOEU-O | 20265372 | 1 × 150 | 16.5 | 22.8-24.8 | 1600 | 2250 | 0.129 | 0.72 | 0.23 | 404 | 21.45 |
| (N)SHOEU-O | 20265373 | 1 × 185 | 17.9 | 24.7-27.7 | 2020 | 2775 | 0.106 | 0.71 | 0.23 | 461 | 26.46 |
| (N)SHOEU-O | 20265374 | 1 × 240 | 21.2 | 27.6-30.6 | 2548 | 3600 | 0.08 | 0.76 | 0.23 | 540 | 34.32 |
| (N)SHOEU-O | 20265377 | 1 × 300 | 23.6 | 31.6-34.6 | 3200 | 4500 | 0.0641 | 0.78 | 0.23 | 620 | 42.9 |
| (N)SHOEU-O | 20265378 | 2 × 1.5 | 1.6 | 9.8-11.4 | 150 | 45 | 13.3 | 0.21 | 0.33 | 23 | 0.18 |
| (N)SHOEU-O | 20265379 | 2 × 2.5 | 2.0 | 10.7-12.3 | 185 | 75 | 7.98 | 0.24 | 0.32 | 30 | 0.31 |
| (N)SHOEU-O | 2 × 4 | 2.4 | 11.9-13.5 | 220 | 120 | 4.95 | 0.27 | 0.30 | 41 | 0.57 | |
| (N)SHOEU-O | 20265395 | 3 × 2.5 | 2.0 | 11.1-12.7 | 210 | 113 | 7.98 | 0.24 | 0.32 | 30 | 0.31 |
| (N)SHOEU-O | 20265396 | 3 × 4 | 2.4 | 12.1-13.7 | 271 | 180 | 4.95 | 0.27 | 0.30 | 41 | 0.57 |
| (N)SHOEU-O | 20265397 | 3 × 6 | 2.9 | 13.2-14.8 | 350 | 270 | 3.3 | 0.32 | 0.29 | 53 | 0.86 |
| (N)SHOEU-O | 20265398 | 3 × 10 | 3.9 | 16.1-18.1 | 505 | 450 | 1.91 | 0.34 | 0.28 | 74 | 1.43 |
| (N)SHOEU-O | 20265399 | 3 × 16 | 5.2 | 19.0-21.0 | 775 | 720 | 1.21 | 0.44 | 0.26 | 99 | 2.29 |
| (N)SHOEU-O | 20265400 | 3 × 25 | 6.4 | 22.9-24.9 | 1160 | 1125 | 0.78 | 0.45 | 0.26 | 131 | 3.58 |
| (N)SHOEU-O | 20265401 | 3 × 35 | 7.5 | 24.9-27.9 | 1550 | 1575 | 0.554 | 0.52 | 0.25 | 162 | 5.01 |
| (N)SHOEU-O | 20265402 | 3 × 50 | 9.0 | 29.4-32.4 | 2180 | 2250 | 0.386 | 0.54 | 0.25 | 202 | 7.15 |
| (N)SHOEU-O | 20265403 | 3 × 70 | 11.1 | 34.8-37.8 | 3020 | 3150 | 0.272 | 0.61 | 0.24 | 250 | 10.01 |
| (N)SHOEU-O | 20265405 | 3 × 95 | 12.8 | 40.9-43.9 | 3810 | 4275 | 0.206 | 0.64 | 0.24 | 301 | 13.59 |
| (N)SHOEU-O | 20265406 | 3 × 120 | 14.4 | 44.7-47.7 | 4970 | 5400 | 0.161 | 0.72 | 0.23 | 352 | 17.16 |
| (N)SHOEU-O | 20265407 | 3 × 150 | 16.1 | 50.0-54.0 | 6290 | 6750 | 0.129 | 0.72 | 0.23 | 404 | 21.45 |
| (N)SHOEU-O | 20265408 | 3 × 185 | 17.9 | 54.6-58.6 | 7470 | 8325 | 0.106 | 0.95 | 0.22 | 461 | 26.46 |
| (N)SHOEU-J | 20265409 | 3 × 1.5 | 1.6 | 10.2-11.8 | 170 | 68 | 13.3 | 0.21 | 0.33 | 23 | 0.18 |
| (N)SHOEU-J | 20265410 | 3 × 2.5 | 2.0 | 11.1-12.7 | 220 | 113 | 7.98 | 0.24 | 0.32 | 30 | 0.31 |
| (N)SHOEU-J | 20265411 | 3 × 4 | 2.4 | 12.1-13.7 | 290 | 180 | 4.95 | 0.27 | 0.31 | 41 | 0.57 |
| (N)SHOEU-J | 20265412 | 3 × 6 | 2.9 | 13.2-14.8 | 360 | 270 | 3.3 | 0.32 | 0.29 | 53 | 0.86 |
| (N)SHOEU-J | 20265413 | 4 × 1.5 | 1.6 | 11.0-12.6 | 204 | 90 | 13.3 | 0.21 | 0.33 | 23 | 0.18 |
| (N)SHOEU-J | 20265414 | 4 × 2.5 | 2.0 | 12.0-13.6 | 270 | 150 | 7.98 | 0.24 | 0.32 | 30 | 0.31 |
| (N)SHOEU-J | 20265415 | 4 × 4 | 2.4 | 13.0-14.6 | 338 | 240 | 4.95 | 0.27 | 0.30 | 41 | 0.57 |
| (N)SHOEU-J | 20265416 | 4 × 6 | 2.9 | 14.9-16.9 | 450 | 360 | 3.3 | 0.32 | 0.29 | 53 | 0.86 |
| (N)SHOEU-J | 20265417 | 4 × 10 | 3.9 | 17.4-19.4 | 690 | 600 | 1.91 | 0.34 | 0.28 | 74 | 1.43 |
| (N)SHOEU-J | 20265418 | 4 × 16 | 5.2 | 21.0-23.0 | 980 | 960 | 1.21 | 0.44 | 0.26 | 99 | 2.29 |
| (N)SHOEU-J | 20265419 | 4 × 25 | 6.4 | 24.5-27.5 | 1490 | 1500 | 0.78 | 0.45 | 0.26 | 131 | 3.58 |
| (N)SHOEU-J | 20265420 | 4 × 35 | 7.5 | 28.4-31.4 | 1870 | 2100 | 0.554 | 0.52 | 0.25 | 162 | 5.01 |
Original product attributes
These product attributes are retained as supplied and should be checked against the ordered construction.
| Product Type | Mining rubber flexible cable |
|---|---|
| Model | (N)SHOEU |
| Search Variant | (N)SHÖU / NSHOEU |
| Voltage Rating | 0.6/1 kV |
| Maximum AC Voltage | 0.7/1.2 kV |
| Maximum DC Voltage | 0.9/1.8 kV |
| AC Test Voltage | Main cores 3.5 kV; control cores 2 kV |
| Conductor | Bare electrolytic copper, finely stranded Class 5 |
| Insulation | EPR special compound, better than 3GI3 |
| Core Identification | Light grey with black digits; -J with green/yellow protective conductor |
| Optional Screen | KON versions only: concentric closed copper-wire layer |
| Inner Sheath | EPR special compound |
| Outer Sheath | 5GM5 chlorinated-rubber special compound |
| Sheath Colour | Yellow |
| Fixed Temperature | -40°C to +80°C |
| Fully Flexible Temperature | -25°C to +60°C |
| Maximum Conductor Temperature | 90°C |
| Short-Circuit Temperature | 250°C maximum |
| Maximum Water Temperature | 40°C |
| Maximum Water Depth | 500 m |
| Bending Radius | According to DIN VDE 0298-3 |
| Maximum Tensile Load | 15 N/mm² on conductor |
| Torsional Stress | ±100°/m |
| Travel Speed | Winding drum car up to 60 m/min |
| Flame Performance | IEC 60332-1-2 |
| Oil Resistance | IEC 60811-404 |
| Water Resistance | EN 50525-2-21 |
| Standard | Based on DIN VDE 0250 Part 812 |
| Application | Mining, tunneling, conveyors, material handling, winding drum cars and submersible pumps |
(N)SHOEU 0.6/1kV Mining Rubber Flexible Cable standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- For engineering selection, (N)SHOEU should not be treated as a generic building wire or a universal high-cycle reeling cable. The project should check tensile load, torsion, bending radius according to DIN VDE 0298-3, travel speed, water depth, ambient temperature and whether an -O or -J core identification is required.
- Wet-duty capability: The supplied data states suitability for submersible pump connections and water resistance according to EN 50525-2-21, with maximum water depth limited to 500 m.
- Minimum Bending Radius According to DIN VDE 0298-3
- Construction Standard Based on DIN VDE 0250 Part 812
- Installation Reference DIN VDE 0298-3
- Factory Surveillance VDE certificate with factory surveillance stated in source data
- Flame Performance IEC 60332-1-2
- Oil Resistance IEC 60811-404
- Water Resistance EN 50525-2-21
Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
Request a cable recommendation and quotation
Send the required services, cable length, mechanical duty, environment, termination and quantity. Our team will review the application before quoting.
- Include the product name or SKU plus the required cable length and quantity.
- Attach a specification, drawing or data sheet when available.
