High Temperature Silicone Rubber SIAF/GL Cable with Fiberglass Braid

High Temperature Silicone Rubber SIAF/GL Cable with Fiberglass Braid is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. This SIAF/GL silicone cable is available in conductor sizes from 0.25mm² to 300mm². Common options include 0.25, 0.35, 0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm². SIAF/GL cable is a flexible high temperature silicone rubber insulated cable with a protective fiberglass braid, designed for fixed wiring where continuous heat resistance and reliable electrical performance are required. The source record places this product in high temperature cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested High Temperature Silicone Rubber SIAF/GL Cable with Fiberglass Braid should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review.

For a named UL AWM braided lead instead of the SIAF/GL construction, review UL 3074 braided silicone wire, 200°C/600 V. Confirm the required standard, conductor size, covering and equipment route before specifying either product.

Internal equipment wiring that runs hotter than a silicone-insulated braided cable allows can be compared with the UL 5390 mica-glass equipment wire, which combines mica with a treated fiberglass braid at 550°C and 300 V AC.

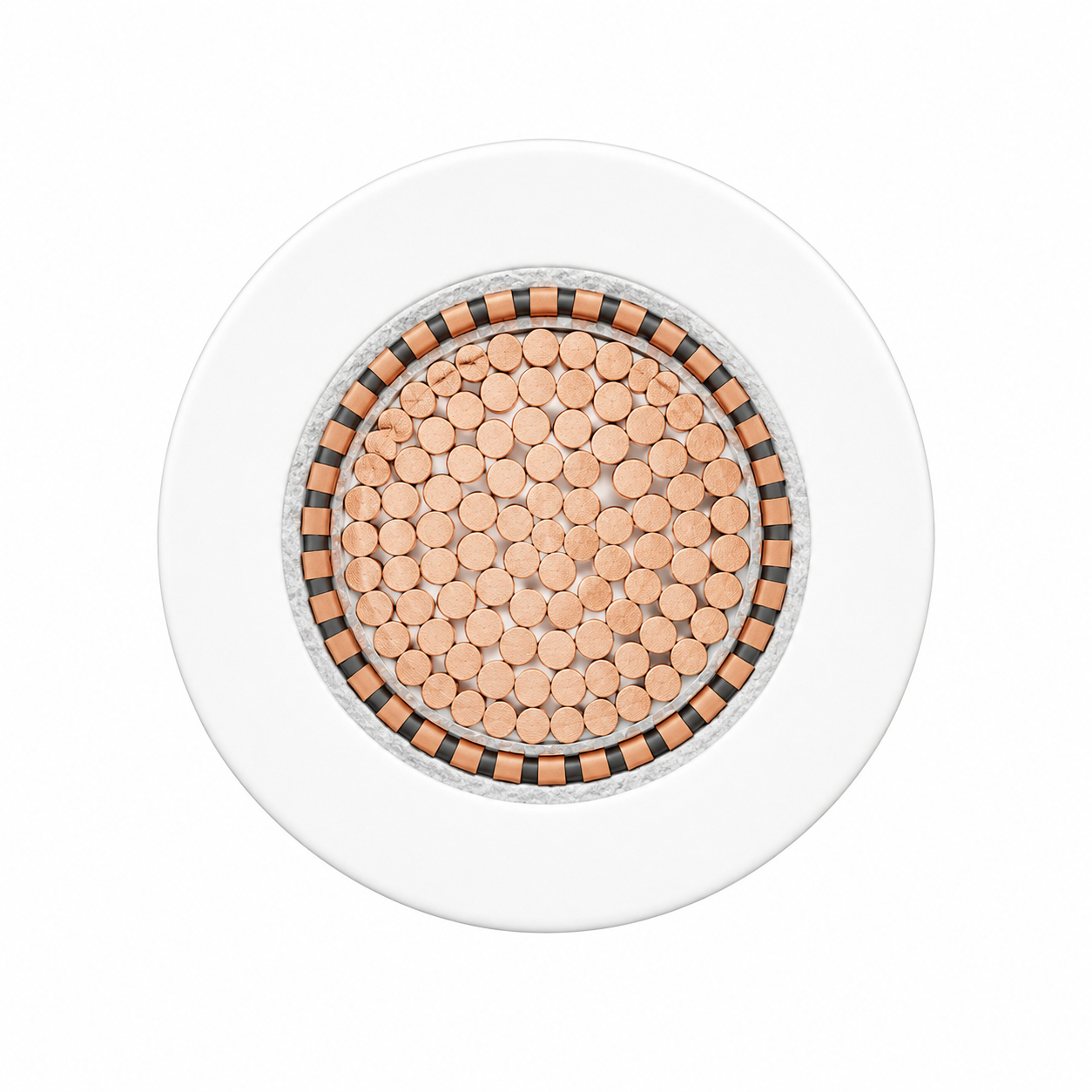

High Temperature Silicone Rubber SIAF/GL Cable with Fiberglass Braid construction

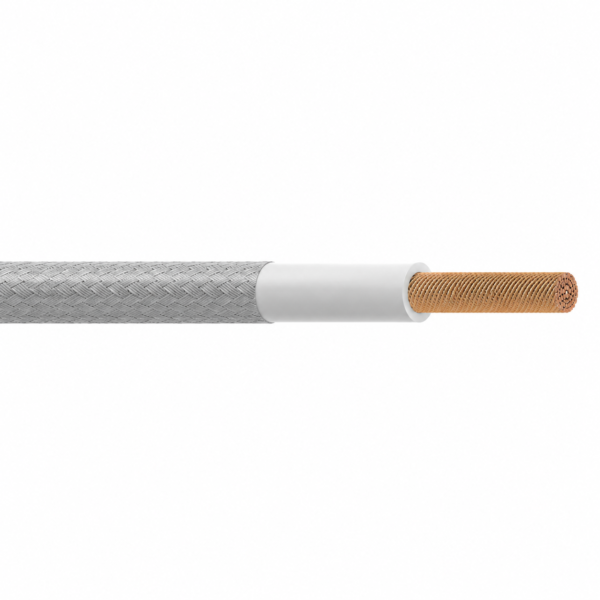

Cable Construction

1. Conductor: Class 5 flexible tinned copper conductor
2. Insulation: Silicone rubber
3. Outer Sheath / Braid: Fiberglass braid
4. Sheath Colours: Black, blue, brown, red, white, grey, violet, pink, orange, yellow and green/yellow

High Temperature Silicone Rubber SIAF/GL Cable with Fiberglass Braid applications

Applications

• Power plant wiring and high temperature electrical installations
• Industrial processing and packaging machinery
• Refrigeration equipment and temperature-variable environments
• Foundries and heat-exposed production areas
• Aircraft construction and shipbuilding applications
• Fixed wiring where heat resistance and flexibility are required

Selection checks

Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.

High Temperature Silicone Rubber SIAF/GL Cable with Fiberglass Braid specifications

The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.

SIAF/GL Cable for High Temperature Industrial Wiring

SIAF/GL cable is a heat-resistant single core cable built with a flexible tinned copper conductor, silicone rubber insulation and an outer fiberglass braid. It is suitable for fixed wiring in environments where cables must continue operating under sustained heat, cold temperatures, and demanding industrial conditions.

Available Sizes

This SIAF/GL silicone cable is available in conductor sizes from 0.25mm² to 300mm². Common options include 0.25, 0.35, 0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm².

Source-listed technical tables

The tables below retain the original product data, including units, ranges and ordering examples.

High Temperature Silicone Rubber SIAF/GL Cable with Fiberglass Braid standards and compliance

The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.

• Relevant Standards EN 50525-2-41, EN 60228

Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
