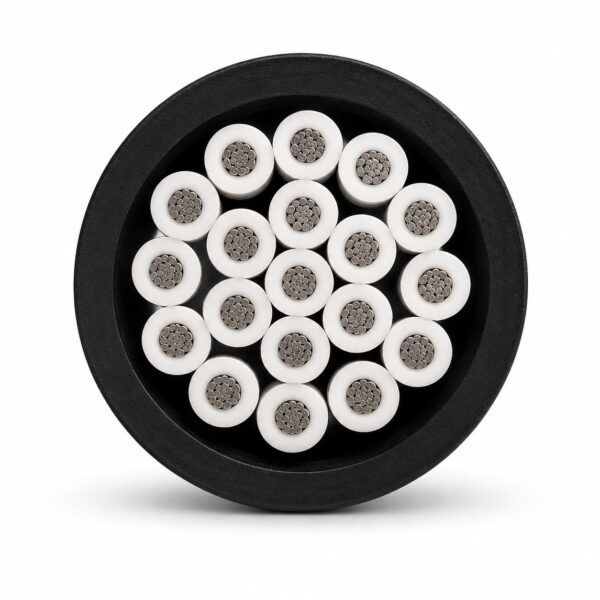

TCu/MGT/EPR/ZH/GSWB/ZH SW4 cable multicore cross-section with white insulated conductors and black sheath

TCu/MGT/EPR/ZH/GSWB/ZH 0.6/1kV SW4 Marine Cable

TCu/MGT/EPR/ZH/GSWB/ZH SW4 cable is a 0.6/1 kV fire-resistant, halogen-free marine cable for fixed wiring in ships and mobile or fixed offshore units. It combines tinned copper conductors, GP4 EPR insulation, SB1 bedding, galvanized steel wire braid armour and a black SW4 elastomer sheath.

Voltage: 0.6/1 kV
Conductor: Class 5 tinned copper at 1.5 mm²; Class 2 stranded tinned copper from 2.5 mm²
Insulation: Halogen-free EPR, Type GP4, with mica glass tape separator
Armour: Galvanized steel wire braid (GSWB)
Sheath: Black halogen-free SW4 elastomer; heat-resistant, oil-resisting and flame-retardant
Temperature: -40°C to +90°C
Minimum bending radius: 4 × cable OD up to 25 mm²; 6 × cable OD for 25 mm² and above
Supplied references: BS 7917 and IEC/EN 60331-21, with IEC/EN 60332 and IEC/EN 60754 test references

For an RFQ, send the required core count, conductor size, cable length, ship or offshore installation area, route conditions and project documentation requirements.

Request a Quote

TCu/MGT/EPR/ZH/GSWB/ZH SW4 Cable for Fixed Shipboard and Offshore Wiring

The TCu/MGT/EPR/ZH/GSWB/ZH SW4 cable is an armoured 0.6/1 kV power and control cable for fixed routes on ships and mobile or fixed offshore units. Its design combines a fire-resistant insulation system with halogen-free elastomer materials and galvanized steel wire braid protection. This makes the model relevant where a project cable schedule calls for the exact SW4 construction rather than a general-purpose industrial cable.

Use the Construction, Applications, Specifications and Standards tabs to check the supplied layer sequence, fixed-installation boundary, size range, current data and test references.

Quick Suitability Check

Suitable for: fixed shipboard and offshore power, lighting or control routes that call for this 0.6/1 kV SW4 construction.
Confirm before use: core count, conductor size, grouping, ambient temperature, voltage drop, gland or termination, route bending and the project certificate schedule.
Not intended as specified: continuous reeling, trailing, festoon, submerged or repeated-flex service. These duties require a separate cable construction review.

Selection Notes for Buyers

Size the cable from the actual installation

The supplied current ratings use a 45°C ambient-air reference. Do not select the conductor from current alone. Check route grouping, enclosure or tray conditions, permitted voltage drop, starting current, protective-device coordination and the temperature de-rating table. Use the nominal diameter and weight values to confirm tray loading, transit seals, cleats and glands.

Distinguish fixed protection from moving-duty flexibility

The galvanized steel wire braid provides mechanical protection around the bedding, but the source identifies this model for fixed wiring. A mobile offshore unit does not automatically make the cable suitable for movement. If the route bends repeatedly, runs over rollers or enters a reel, provide the movement cycle, bend diameter and speed so a moving-duty cable can be reviewed.

Check substitutions layer by layer

When replacing an existing cable, compare more than voltage and conductor size. Confirm the full marking, conductor class, mica glass tape, GP4 insulation, SB1 bedding, GSWB armour, SW4 sheath, core numbering, overall diameter and required documentation. RFOU and other offshore cables can serve different project specifications and should not be treated as direct equivalents without engineering review.

Related Marine and Offshore Cable Options

Browse the Marine & Offshore Cables range. For project schedules based on NEK 606 or a specific RFOU construction, review the 0.6/1 kV RFOU marine and offshore cable or the size-specific 5G 35 mm² RFOU cable. These are related selection paths, not automatic substitutes for SW4 cable.

Information Needed for Quotation

Required model or existing cable sheath marking
Voltage, number of cores and conductor cross-sectional area
Length per drum and total quantity
Ship, platform or offshore equipment and installation area
Tray, cleat, gland, transit-seal and termination requirements
Ambient temperature, grouping and voltage-drop limits
Required standard, third-party inspection, test report, certificate, marking and packing documents

Request a technical quotation with the cable schedule or a clear photo of the existing marking.

Why Work With TEBAOFLEX

TEBAOFLEX can review the requested core arrangement, conductor size, length, marking and documentation package before quotation. Jiangsu Tebaoflex Special Cable Co., Ltd. holds ISO 9001, ISO 14001 and ISO 45001 management-system certificates within their stated company scopes; these are management-system credentials and do not replace project-specific product approval. For replacement enquiries, send the complete cable marking and project specification so the proposed construction can be checked against the original requirement.

FAQ

What is TCu/MGT/EPR/ZH/GSWB/ZH SW4 cable used for?

TCu/MGT/EPR/ZH/GSWB/ZH SW4 cable is used for fixed 0.6/1 kV power, lighting and control wiring in ships and mobile or fixed offshore units where the specified construction calls for fire-resistant EPR insulation, halogen-free materials and GSWB armour.

Is this SW4 cable suitable for reeling or continuous movement?

Not on the supplied evidence. The stated application is fixed wiring. Reeling, trailing, festoon or repeated-flex routes require a separate moving-duty cable review.

What sizes and core counts are listed?

The supplied dimensions cover 2-, 3- and 4-core cables from 1.5 to 120 mm²; 5-, 7-, 12-, 19- and 27-core cables at 1.5 and 2.5 mm²; and 37-core cable at 1.5 mm².

Does the page claim Lloyd’s Register approval?

No. No TEBAOFLEX Lloyd’s certificate scope was supplied. If a classification-society approval is mandatory, include it in the RFQ so the applicable documentation can be confirmed.

What should be checked before replacing another marine cable?

Compare the complete model marking, voltage, conductor class and size, core count, insulation and sheath compounds, armour, diameter, weight, bend requirement, fire test references and project certificate schedule.

Construction

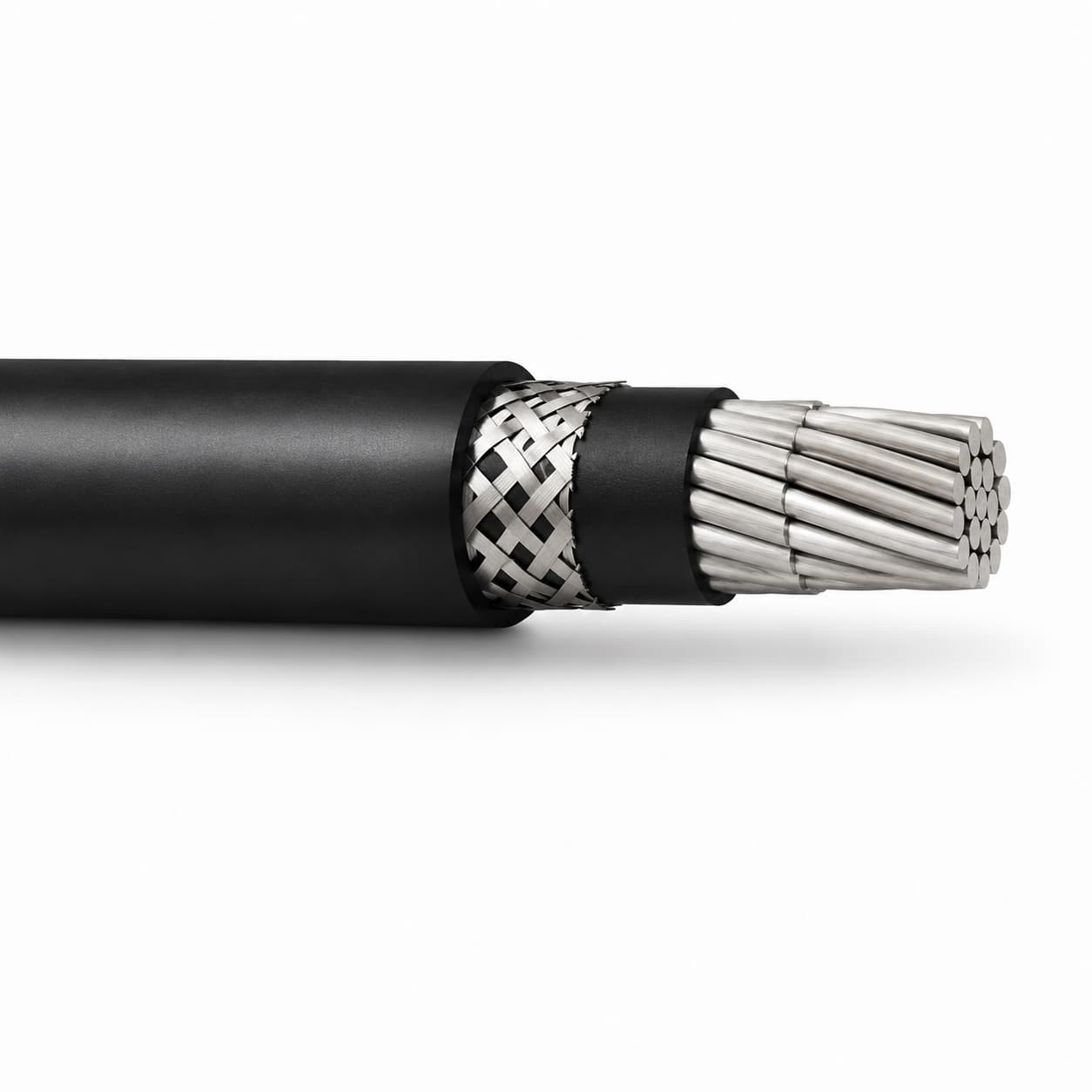

The supplied TCu/MGT/EPR/ZH/GSWB/ZH construction uses tinned copper conductors, a fire-resistant insulation system, halogen-free bedding, galvanized steel wire braid armour and a black SW4 elastomer outer sheath.

Layer	Supplied construction	Selection note
Conductor	1.5 mm²: Class 5 flexible tinned copper; 2.5 mm² and above: Class 2 stranded tinned copper	Confirm conductor class with the termination method.
Separator	Mica glass tape	Part of the supplied fire-resistant layer system.
Insulation	Halogen-free EPR, Type GP4	White cores with black printed numbers.
Bedding	Halogen-free EPR elastomer, Type SB1	Protects the laid-up core assembly beneath the braid.
Armour	Galvanized steel wire braid (GSWB)	Mechanical protection for fixed routes; not evidence of reeling suitability.
Outer sheath	Black halogen-free, heat-resistant, oil-resisting and flame-retardant elastomer, Type SW4	Confirm project-specific environmental and certificate requirements.

Applications

This 0.6/1 kV SW4 marine cable is specified for fixed wiring in ships and on mobile or fixed offshore units. The GSWB-armoured construction suits protected fixed routes where the project cable schedule calls for this exact model and supplied test references.

Fixed power distribution wiring on ships
Fixed lighting and control circuits in shipboard installations

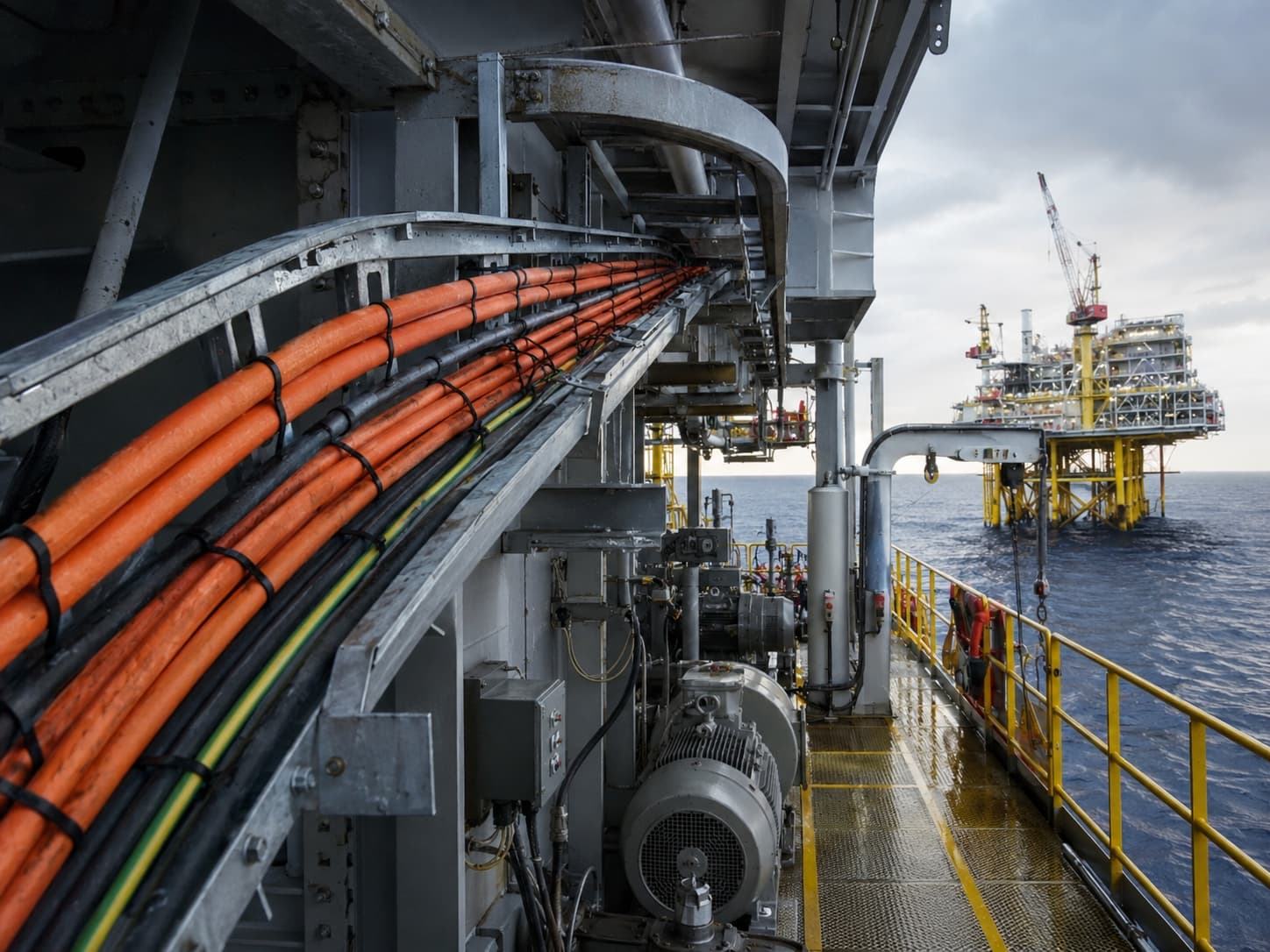

Fixed cable-tray and protected routes on offshore platforms
Mobile offshore units where the installed cable itself remains in a fixed route
Projects requiring the supplied TCu/MGT/EPR/ZH/GSWB/ZH SW4 layer sequence

Use boundary: Do not specify this fixed-wiring construction for continuous reeling, trailing, festoon, repeated-flex or submerged duty without a separate engineering review.

Specifications

The following values are transcribed from the supplied technical data. Dimensions and weights are nominal. Current ratings use a 45°C ambient-air reference and require project-specific correction for the actual installation.

Model	TCu/MGT/EPR/ZH/GSWB/ZH SW4 Cable
Voltage rating	0.6/1 kV
Operating temperature	-40°C to +90°C
Minimum bending radius	Up to 25 mm²: 4 × overall diameter; 25 mm² and above: 6 × overall diameter
Core identification	White cores with black printed numbers
Sheath colour	Black

Nominal Dimensions and Weights

Confirm final manufacturing dimensions before selecting glands, transits, cleats or tray capacity.

Cores	Nominal cross-sectional area (mm²)	Nominal overall diameter (mm)	Nominal weight (kg/km)
2	1.5	14.4	312
2	2.5	15.3	350
2	4	17.5	464
2	6	18.9	542
2	10	20.9	696
2	16	23.7	947
2	25	27.8	1330
2	35	30.5	1639
2	50	34.7	2163
2	70	38.9	2824
2	95	44.4	3766
2	120	48.0	4483
3	1.5	14.2	319
3	2.5	15.6	378
3	4	17.7	502
3	6	19.1	596
3	10	21.5	803
3	16	24.4	1102
3	25	29.7	1611
3	35	33.2	2138
3	50	37.1	2669
3	70	41.5	3529
3	95	47.3	4730
3	120	51.1	5642
4	1.5	15.6	366
4	2.5	16.7	440
4	4	19.3	594
4	6	20.1	727
4	10	23.6	973
4	16	26.9	1345
4	25	33.3	2110
4	35	36.5	2671
4	50	40.7	3350
4	70	45.8	4436
4	95	52.2	5960
4	120	57.7	7093
5	1.5	17.5	464
5	2.5	18.7	566
7	1.5	18.8	580
7	2.5	20.0	708
12	1.5	23.9	797
12	2.5	26.0	986
19	1.5	27.1	1139
19	2.5	29.1	1435
27	1.5	31.9	1461
27	2.5	37.2	1983
37	1.5	35.8	1608

Current Ratings at 45°C Ambient Air

Values are in amperes. A dash means no value was supplied for that core-count and conductor-size combination.

mm²	1 core	2 cores	3/4 cores	5 cores	7 cores	10 cores	12 cores	16 cores	19 cores	20 cores	24 cores	27 cores	30 cores	37 cores
1	18	15	13	10.5	9	8	8	7	7	7	6	6	6	5
1.5	23	20	16	12	10	9	9	8	7	7	6.5	6.5	6	6
2.5	30	26	21	16	15	13	12	11	10	10	9.5	9	9	8
4	40	34	28	—	—	—	—	—	—	—	—	—	—	—
6	52	44	36	—	—	—	—	—	—	—	—	—	—	—
10	72	61	50	—	—	—	—	—	—	—	—	—	—	—
16	96	82	67	—	—	—	—	—	—	—	—	—	—	—
25	127	108	89	—	—	—	—	—	—	—	—	—	—	—
35	157	133	110	—	—	—	—	—	—	—	—	—	—	—
50	196	167	137	—	—	—	—	—	—	—	—	—	—	—
70	242	206	169	—	—	—	—	—	—	—	—	—	—	—
95	293	249	205	—	—	—	—	—	—	—	—	—	—	—
120	339	288	237	—	—	—	—	—	—	—	—	—	—	—

Ambient Temperature De-rating Factors

Ambient temperature	35°C	40°C	45°C	50°C	55°C	60°C	65°C	70°C	75°C	80°C
De-rating factor	1.10	1.05	1.00	0.94	0.88	0.82	0.74	0.67	0.58	0.47

Tinned Copper Conductor Data

Nominal area (mm²)	Conductor class	Maximum wire diameter (mm)	Maximum DC resistance at 20°C (Ω/km)
1	Class 5	0.21	20.0
1.5	Class 5	0.26	13.7

Nominal area (mm²)	Minimum wires, circular	Minimum wires, compacted	Minimum wires, shaped	Maximum DC resistance at 20°C (Ω/km)
2.5	7	6	—	7.56
4	7	6	—	4.70
6	7	6	—	3.11
10	7	6	—	1.84
16	7	6	—	1.16
25	7	6	6	0.734
35	7	6	6	0.529
50	19	6	6	0.391
70	19	12	12	0.270
95	19	15	15	0.195
120	37	18	18	0.154

Standards

The following construction and test references are supplied for this cable. They describe the stated product design and test basis; they do not, by themselves, establish a TEBAOFLEX third-party certificate or class approval.

Reference	Supplied scope	Procurement note
BS 7917	Supplied construction reference for this shipboard/offshore cable	Confirm the required edition and project schedule at RFQ stage.
IEC/EN 60331-21	Fire-resistance test reference for cables rated up to and including 0.6/1 kV	Request the applicable test documentation if required.
IEC/EN 60332-3-22	Vertical flame-spread test reference for bunched cables	Confirm the required category and evidence.
IEC/EN 60332-1-2	Single-cable vertical flame-propagation test reference	Confirm project acceptance criteria.
IEC/EN 60754-1/2	Halogen-acid gas and acidity/conductivity test references	Do not infer low-smoke performance unless the project also specifies and verifies it.

Approval boundary: TEBAOFLEX certification files were reviewed. The supplied CE/EMC/LVD, UL/cUL, KC/KTL and VDE documents do not explicitly cover this exact SW4 model, or the necessary model annex was not supplied. Do not treat them as product approvals for this cable. Company ISO 9001, ISO 14001 and ISO 45001 management-system certificates are available within their stated scopes, but they do not certify this product to BS 7917. Include any required classification-society approval, declaration, RoHS/REACH evidence or exact-model certificate in the RFQ for confirmation before order.
