Type LSX 1C Armored & Sheathed 1 kV / 2 kV Power Cable

Type LSX 1C armored and sheathed cable for low-smoke marine power routes

Type LSX 1C armored and sheathed cable is designed for 1 kV or 2 kV AC power circuits on shipboard fixed and floating facilities, FPSOs, TLPs, marine vessels, oilfield equipment and offshore wind substations. The construction pairs a flexible tinned-copper conductor with irradiated low-smoke, zero-halogen cross-linked polyolefin insulation, metallic braid armour and an impervious LSZH outer sheath.

Select Type LSX 1C armored and sheathed cable when a project needs the documented low-smoke, zero-halogen material system together with braid armour and a sheath over the armour. The supplied information connects this construction with resistance to oils, fluids, saltwater, abrasion, moisture and UV light. For Class I, Division 1 and Zone 1 routes, final selection and installation must follow the governing standard and the authority having jurisdiction.

• Suitable for: stated 1 kV and 2 kV marine, offshore, oilfield and offshore-wind power routes.
• Confirm before ordering: voltage class, conductor size, armour material, cable gland, bonding, installation method and documentation.
• Choose another construction when: the schedule requires multi-core, control, instrumentation, VFD or a different circuit-integrity design.

Explore the Marine & Offshore Cables range and Marine & Offshore Cable Solutions for related selection paths. Detailed Type LSX 1C armored and sheathed cable data is in the technical tabs.

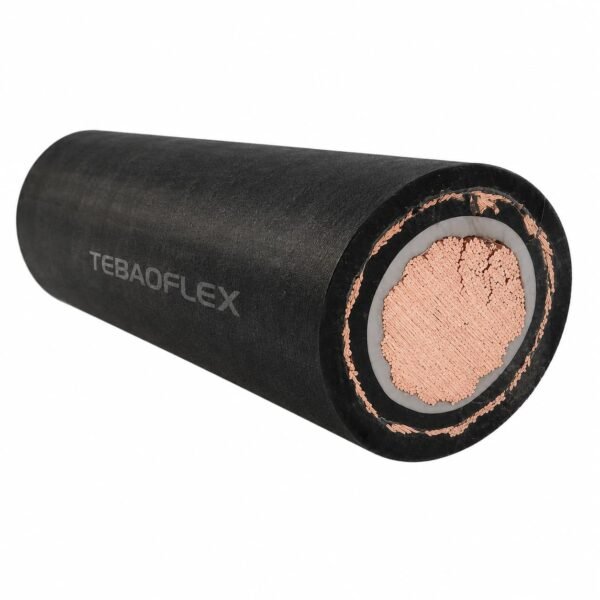

Type LSX 1C armored and sheathed cable construction

Type LSX 1C armored and sheathed cable uses a flexible, soft-annealed tinned-copper conductor in accordance with ASTM B33, B8, B172 and B174. The supplied construction identifies irradiated LSZH cross-linked polyolefin Type LSX insulation, a non-hygroscopic, non-wicking binder tape, metallic braid armour and an LSZH Type L outer sheath.

Construction selection notes

• Type LSX 1C armored and sheathed cable armour material must be stated on the RFQ; do not assume that bronze, tinned-copper and stainless-steel braid are interchangeable.
• Confirm cable glands, armour continuity/bonding and terminations against the selected braid material and installation standard.
• Type LSX 1C armored and sheathed cable is a single-conductor construction. Confirm circuit grouping and installation geometry when selecting ampacity.

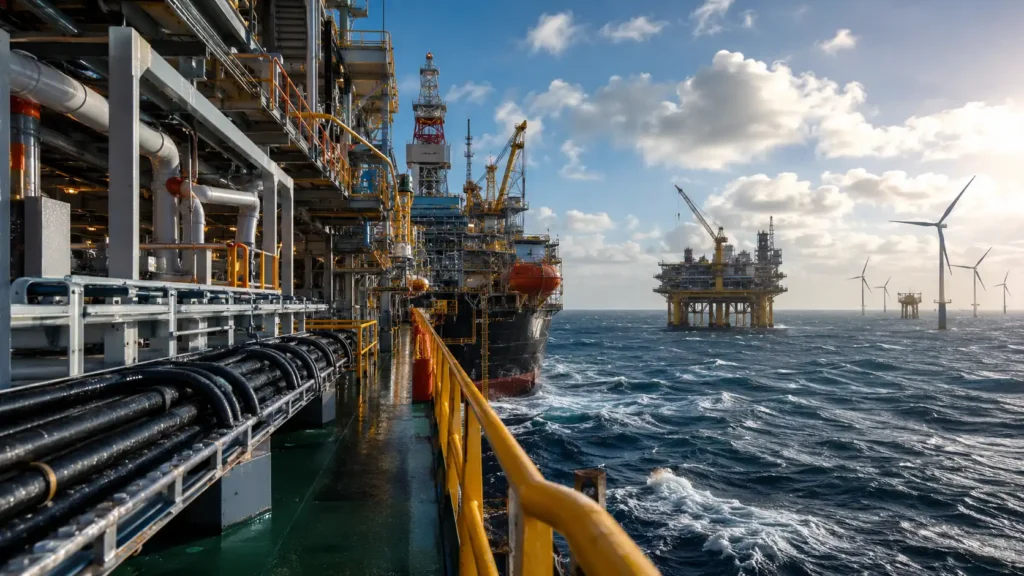

Type LSX 1C armored and sheathed cable applications

Type LSX 1C armored and sheathed cable is specified for shipboard fixed and floating facilities, FPSOs, TLPs, marine vessels, oilfield equipment and offshore wind substations. Its supplied LSZH material system, braid armour and outer sheath support use where both smoke/halogen limits and route mechanical protection are part of the project requirement.

Installation and selection guidance

• Use Type LSX 1C armored and sheathed cable for the specified one-core power circuit, not as a generic substitute for a multi-core or unarmoured cable.
• For Class I, Division 1 and Zone 1 locations, Type LSX 1C armored and sheathed cable must be installed to the referenced standards and AHJ requirements; the supplied material calls for braid armour with an impervious sheath over the armour.
• Base Type LSX 1C armored and sheathed cable ampacity on the chosen 1 kV or 2 kV table, free-air or raceway installation and 45°C ambient basis.
• Confirm armour bonding, bend route, support spacing, cable-gland suitability, classification evidence and inspection documents before ordering.

For offshore wind substations, use Type LSX 1C armored and sheathed cable to separate a low-smoke marine power requirement from signal, control, VFD or circuit-integrity cable duties.

Type LSX 1C armored and sheathed cable specifications

Type LSX 1C armored and sheathed cable dimensions are nominal, subject to standard manufacturing tolerances and may change without notice. Confirm the final product number and approved drawing before procurement.

1 kV nominal dimensions, weight and ampacity

2 kV nominal dimensions, weight and ampacity

• IEC* values for Type LSX 1C armored and sheathed cable are prorated from square-millimetre sizes from IEC 60092-352 and DNV-OS-D201, as stated in the supplied data.
• Use the supplied recommended values only with their stated temperature column and installation condition.
• Do not use nominal dimensions or ampacity tables in place of a project cable schedule, protection study or approved termination drawing.

Type LSX 1C armored and sheathed cable standards and performance references

The supplied Type LSX 1C armored and sheathed cable information identifies the following industry, listing, approval and test references. Use the exact 1 kV or 2 kV product configuration when requesting records.

For Type LSX 1C armored and sheathed cable documentation, state the voltage class, braid armour material and required project standard in the RFQ.

Industry compliance references

Listings, approvals and test references supplied

Include the required standard edition, classification approval, test report and inspection-document requirement with the Type LSX 1C armored and sheathed cable enquiry.
