Type MP-GC 15kV Mine Power Feeder Cable

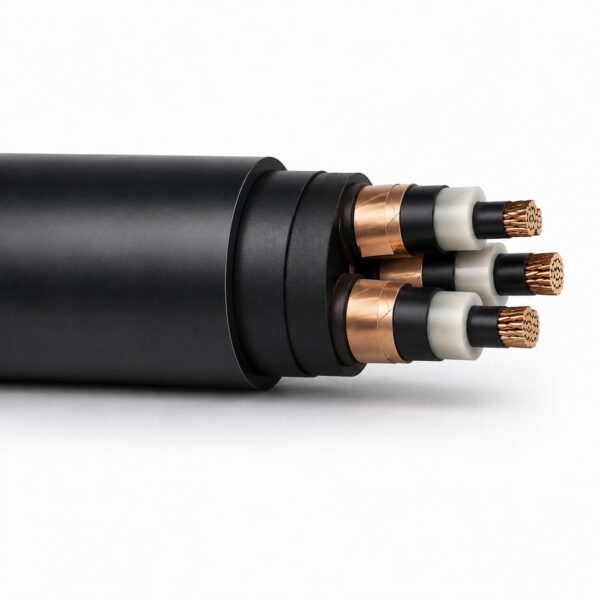

Type MP-GC 15kV mine power feeder cable is a three-conductor, ground-check feeder cable for fixed high-voltage distribution in mines, tunnels, shafts and mine load-centre systems. The supplied construction uses stranded bare copper conductors, XLPE insulation, semiconducting screens, copper tape insulation shields, two grounding conductors, one insulated ground-check conductor and a black PVC jacket.
- Rated voltage: 15 kV
- Temperature range: -20°C to +90°C
- Power conductors: Three conductors with reference sizes from 2 AWG to 500 kcmil
- Insulation: XLPE with conductor and insulation screening
- Grounding arrangement: Two bare copper grounds plus one yellow-insulated ground-check conductor
- Outer jacket: Black PVC
- Installation: Duct, trough, tray, aerial route or direct burial for non-flexing service
- Reference standard: ICEA S-75-381 / NEMA WC 58
For quotation, send the conductor size, cable length, installation route, termination details, required standard edition and any project-specific approval or marking requirement.
Type MP-GC 15kV Cable for Fixed Mine Power Distribution
Type MP-GC 15kV mine power feeder cable is intended for high-voltage connections between mine distribution systems, tunnels, shafts and load centres where the circuit includes ground-continuity monitoring. It is a three-conductor feeder construction for permanent or other non-flexing routes rather than a cable for continuous trailing or reeling.
The cable can be considered for ducts, troughs, cable tray, aerial routes, bore holes and direct-buried mine feeders when the installation method and project specification permit. The internal grounding and ground-check arrangement must be coordinated with the protection system, couplers, terminations and mine requirements.
- Suitable for: fixed 15kV mine feeder circuits between distribution equipment and load centres.
- Confirm before ordering: system voltage, conductor size, route length, installation method, grounding arrangement, ground-check circuit and termination design.
- Choose another construction when: the cable will be repeatedly dragged, reeled, flexed or exposed to dynamic torsion.
Continue the mining cable selection: For the full Mining & Tunneling Cables range and application guidance, see Mining and Tunneling Cable Solutions. For general underground coal-mine power circuits, compare Type 240 Underground Coal Mine Cable; for the related screened feeder family, review Type 241 Mining Cable. Send the equipment, voltage and route details for an RFQ.
Construction

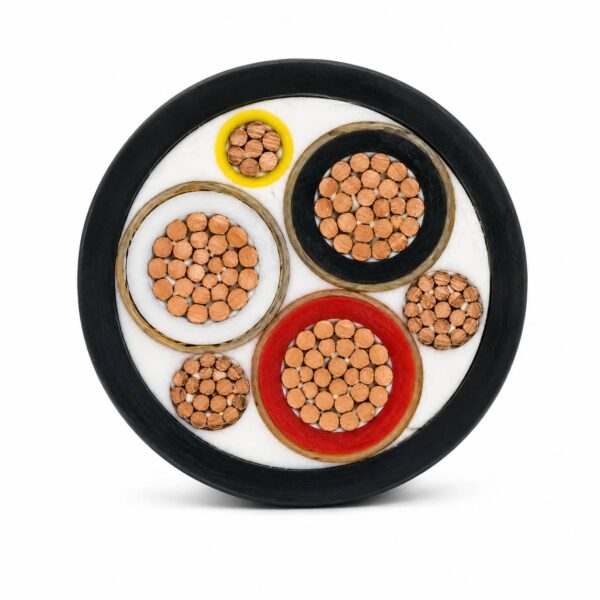

Type MP-GC 15kV uses a three-conductor mine power feeder construction with electrical-field screening, grounding conductors and a dedicated ground-check conductor. Final layer dimensions and conductor sizes must follow the approved production datasheet.
| Component | Supplied Construction | Function |
|---|---|---|
| Power conductors | Stranded bare annealed copper; ASTM B3 and B8 references are stated in the supplied data | Carries the three-phase mine feeder current |
| Conductor shield | Extruded semiconducting layer over each conductor | Controls the electrical field at the conductor-to-insulation interface |
| Insulation | Cross-linked polyethylene, XLPE | Provides the primary dielectric layer for the 15kV circuit |
| Insulation shield | Extruded semiconducting insulation shield with helically applied copper tape | Provides electrical-field control and a metallic shielding path |
| Grounding conductors | Two bare copper grounding conductors | Provides the equipment grounding path specified for the circuit |
| Ground-check conductor | One copper conductor with yellow insulation | Connects to the specified ground-continuity monitoring circuit |
| Core assembly | Three power conductors with grounding and ground-check elements assembled into a round cable | Maintains the required conductor arrangement and cable profile |
| Outer jacket | Black polyvinyl chloride, PVC | Provides external mechanical and environmental protection |
Applications
Type MP-GC 15kV cable is intended for fixed or permanent high-voltage mine power distribution where the protection system requires a dedicated ground-check conductor.

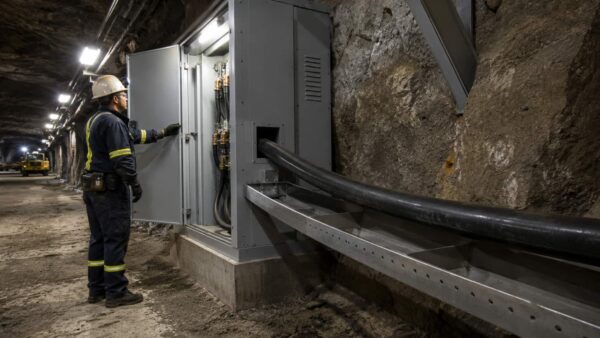

Fixed mine power feeder route between distribution equipment and an underground load centre.Suitable installation routes
- High-voltage connections between mine distribution systems and load centres
- Underground mine tunnels and shafts
- Mine bore-hole power distribution routes
- Duct and conduit installations
- Cable trough and cable tray installations
- Project-approved aerial feeder routes
- Direct-buried mine feeder circuits
Selection boundaries
- Use this construction for fixed or non-flexing service rather than continuous trailing, reeling or festoon operation.
- Do not select the cable only by voltage; confirm the grounding, ground-check, shielding and termination requirements.
- Do not treat Type MP-GC and Type SHD-GC as automatically interchangeable. The required movement duty and cable construction must be reviewed separately.
- For vertical suspension, repeated relocation or mechanically dynamic routes, provide the complete installation details for an engineering review.
Specifications
The following values are supported by the supplied product information. Final outside diameter, weight, ampacity and auxiliary-conductor sizes must be confirmed against the approved TEBAOFLEX design for the ordered cable size.| Product type | Type MP-GC mine power feeder cable with ground check |
|---|---|
| Rated voltage | 15,000 V |
| Power conductor count | Three |
| Reference conductor sizes | 2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG, 250 kcmil, 350 kcmil and 500 kcmil |
| Temperature range | -20°C to +90°C |
| Insulation | XLPE |
| Grounding conductors | Two bare copper conductors; size depends on the selected power conductor |
| Ground-check conductor | One yellow-insulated copper conductor; final size requires confirmation |
| Outer jacket | Black PVC |
| Installation mode | Fixed, permanent or other non-flexing mine feeder installation |
Reference Size Schedule
Nominal values are taken from the supplied reference data. Confirm the final production dimensions before ordering.| Power Conductor Size | Conductor Strands | Nominal Insulation Thickness | Nominal Jacket Thickness |
|---|---|---|---|
| 2 AWG | 7 | 0.175 in / 4.46 mm | 0.140 in / 3.6 mm |
| 1/0 AWG | 19 | 0.175 in / 4.46 mm | 0.140 in / 3.6 mm |
| 2/0 AWG | 19 | 0.175 in / 4.46 mm | 0.140 in / 3.6 mm |
| 4/0 AWG | 19 | 0.175 in / 4.46 mm | 0.140 in / 3.6 mm |
| 250 kcmil | 37 | 0.175 in / 4.46 mm | 0.140 in / 3.6 mm |
| 350 kcmil | 37 | 0.175 in / 4.46 mm | 0.140 in / 3.6 mm |
| 500 kcmil | 37 | 0.175 in / 4.46 mm | 0.170 in / 4.3 mm |
Standards
| Reference | Purpose | Publication Requirement |
|---|---|---|
| ASTM B3 | Reference for annealed copper conductor wire | Confirm that the final conductor construction uses this reference |
| ASTM B8 | Reference for stranded copper conductors | Confirm conductor class and stranding for each ordered size |
| ICEA S-75-381 / NEMA WC 58 | Supplied reference for portable and power feeder cables used in mines and similar applications | State the exact required edition in the quotation and order specification |
| NEMA WC 23058 | Redesignated NEMA reference replacing the former WC 58 designation | Confirm whether the project specification accepts or requires the redesigned edition |
