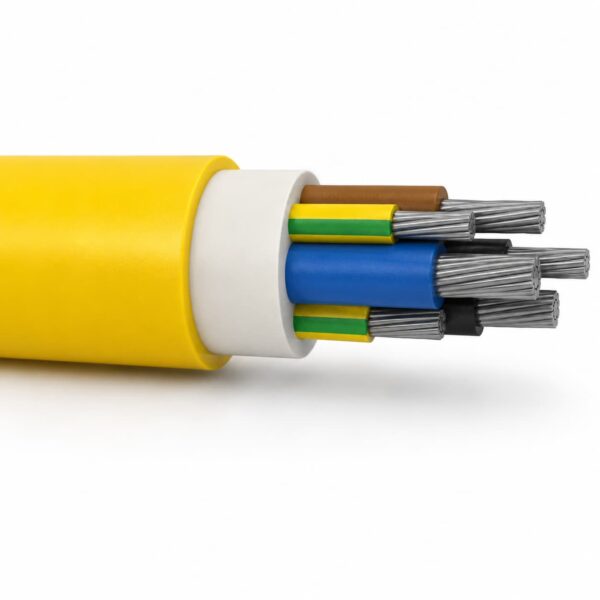

NTSWÖU-J Cable for Low Voltage Trailing Applications
The NTSWÖU-J Cable is a 0.6/1kV flexible trailing cable designed for mobile power supply routes in mining, tunneling and heavy industrial environments. Its class 5 tinned copper conductors, EPR-based 3GI3 insulation and rugged 5GM5 outer sheath make it suitable for equipment where the cable may be moved, dragged, bent and exposed to oil, moisture and mechanical wear.
Key Engineering Features
- Flexible class 5 conductor: Stranded tinned copper conductors support repeated movement and help reduce corrosion risk in humid or underground environments.
- 3GI3 insulated cores: The EPR-based insulation provides a robust electrical layer for low-voltage equipment power supply.
- Ground core arrangement: Cores are laid up in contact with each other and interstitial ground cores, supporting compact construction and protective grounding.
- GM1b inner sheath: The special elastomeric inner sheath helps stabilize the laid-up cores and improves the cable’s mechanical integrity.
- 5GM5 outer sheath: The heavy-duty elastomer sheath is suited to trailing service where abrasion, oil, flame risk and outdoor exposure must be considered.
- Clear site identification: Yellow or black sheath options help match site visibility and equipment marking requirements.
Technical Specifications
| Product Type | Flexible trailing cable |
| Model | NTSWÖU-J |
| Rated Voltage | 0.6/1kV |
| AC Test Voltage | 3kV |
| Maximum Operating Temperature | 90°C |
| Short-Circuit Temperature | 250°C |
| Working Temperature, Fixed | -40°C to +80°C |
| Working Temperature, Mobile | -25°C to +80°C |
| Minimum Bending Radius | According to VDE 0298-3 Table 3 |
| Current Carrying Capacity | According to VDE 0298-4 |
| Outer Sheath Colour | Yellow or black |
Cable Construction
- Conductor: Electrolytic stranded tinned copper wire, DIN VDE 0295 class 5.
- Insulation: All cores insulated with 3GI3 compound according to DIN VDE 0207 Part 20.
- Lay-up: All cores laid up in contact with each other and interstitial ground cores.
- Inner sheath: Special elastomeric GM1b compound according to DIN VDE 0207 Part 21.
- Outer sheath: Heavy-duty 5GM5 elastomer compound according to DIN VDE 0207 Part 21.
Standards and Compliance
| Construction | DIN VDE 0250-813 |
| General Requirements | DIN VDE 0250-1 |
| Guide to Use | DIN VDE 0298-3 |
| Electrical Tests | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests | DIN VDE 0472-401, 402, 602, 303, 615 |
| Under Fire Condition Tests | DIN VDE 0472-803, 804 |
| Flame Retardant | VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 |
| Oil Resistant | HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1 |
Dimensions and Weight
| Cross Section | Overall Diameter Min-Max | Approx. Weight |
|---|---|---|
| 3 x 25 + 3 x 25/3 | 40.0 – 44.0mm | 2470kg/km |
| 3 x 35 + 3 x 25/3 | 44.4 – 48.4mm | 3150kg/km |
| 3 x 50 + 3 x 25/3 | 47.7 – 51.7mm | 3750kg/km |
| 3 x 70 + 3 x 35/3 | 52.3 – 56.3mm | 4690kg/km |
| 3 x 95 + 3 x 50/3 | 59.9 – 63.9mm | 6210kg/km |
| 3 x 120 + 3 x 70/3 | 63.8 – 67.8mm | 7430kg/km |
| 3 x 150 + 3 x 70/3 | 69.2 – 73.2mm | 8900kg/km |
| 3 x 185 + 3 x 95/3 | 73.1 – 77.1mm | 10330kg/km |
Applications
- Mobile mining equipment power supply.
- Tunneling equipment and underground industrial machinery.
- Trailing cable routes where the cable is moved or dragged during operation.
- Low-voltage heavy-duty power connections in harsh industrial environments.
- Sites requiring oil resistant, flame retardant and mechanically durable rubber cable.
