Oil & Gas Cable Selection Framework
Oil and gas cable selection starts with the circuit duty and the installation environment, not with a cable name. Identify whether the route carries power, control, instrumentation or a VFD motor circuit, then confirm voltage, conductor size, shielding, armour, sheath, movement and project documentation. This guide is a selection framework, not a substitute for an approved electrical design, hazardous-area review or authority decision.
Oil and Gas Cable Selection at a Glance
Use the table as a first screen. The linked product pages contain the published construction and size information; the final choice still depends on the project specification and installation conditions.
| Application | Cable family to review | Decision checks | Next resource |
|---|---|---|---|
| Drilling rig or package power | Type P power cable | Voltage, current, conductor size, route length, oil/mud exposure, mechanical protection | Oil and gas cable category |
| Refinery or petrochemical control | Type P control and signal cable | Core count, AWG, shield, armour, panel route, fire and documentation requirements | Type P control cable |
| Instrumentation and paired signals | Solid pair, triad, Signal IO or Signal OS construction | Pair/triad count, individual/overall screen, termination, noise and environmental exposure | Signal IO options |
| Drive-fed pump or motor | Shielded Type P VFD cable | Drive output, insulation stress, grounding, EMC, conductor size, route and termination | Type P VFD cable |
| Offshore or salt-air package | Published Type P or marine/offshore construction | Oil, moisture, sunlight, salt air, flame performance, approval scope and installation area | Oil, gas and petrochemical solutions |
Start With the Circuit Duty
The circuit function determines the first cable family. A cable that is electrically adequate for one duty may be mechanically or electromagnetically wrong for another. Treat the product name as a starting point and confirm the complete route.
Power cable for drilling and package equipment
Power routes on drilling skids, pumps, compressors and refinery packages are normally screened by voltage, load, conductor size, voltage drop, short-circuit duty and installation method. A published Type P power construction may be available as a single-conductor or multicore option; compare the actual product data rather than assuming that two products with the same voltage are interchangeable.
For a power RFQ, provide the circuit voltage, phase arrangement, continuous and starting load, one-way length, conductor material, allowable voltage drop, installation route and required protection. If the cable is exposed to oil, diesel, hydraulic fluid or drilling mud, state the exposure and duration rather than using the broad phrase “oil resistant.”
Review the Type P single-conductor power option and the Type P five-conductor power option only after the circuit arrangement is known.
Control and signal cable for refinery and oilfield systems
Control and signal circuits have different failure modes from power circuits. The selection may depend on conductor count, pair or triad layout, individual and overall shielding, armour, panel termination, electromagnetic noise and fire-performance requirements. A cable with a suitable voltage rating can still be unsuitable if the screen or termination does not match the instrument loop.
Use the Type P control construction for a starting comparison, then confirm the required AWG, armour, sheath and screen arrangement. For instrument circuits, compare the published unarmoured Signal IO, armoured Signal IO and Signal OS pages. These links are product references, not a claim that any one construction fits every instrument system.
Solid pair and triad cable for instrumentation
Searches for “solid pair cables for gas and oil” and “gas and oil resistant triad stranded cables” usually describe an instrumentation decision rather than a generic power cable. Start by identifying the signal type, pair or triad count, screen arrangement, colour code, termination and required loop performance.
Individual shielding can control pair-to-pair interference; an overall screen can address the cable-level environment; armour can add mechanical protection. The correct combination depends on the instrument design and grounding plan. Do not use “solid pair,” “triad” or “shielded” as a substitute for the actual construction drawing. See the full pair and triad construction and standards tables below.
VFD motor cable
A VFD output creates fast voltage transitions and common-mode current that can affect insulation stress, bearing currents, EMC and termination. A VFD cable selection should therefore confirm drive output, motor rating, cable length, screen/grounding method, installation separation, termination and the drive manufacturer’s requirements.
The Type P VFD cable page provides a published product reference. It should not be treated as a universal replacement for every drive cable or as proof of a completed EMC design.
Match the Cable to the Environment
Oil and gas routes can combine chemical exposure, water, salt, UV, vibration and mechanical handling. Ask what the cable will actually experience and for how long.
Oil, diesel, hydraulic fluid and drilling mud
“Oil resistant” is a scoped performance statement. Confirm the fluid type, temperature, contact frequency and test or product-data basis. Drilling mud can add solids, water, pressure and abrasion; it is not identical to a clean oil splash. If a route sees multiple fluids, list each one in the RFQ.

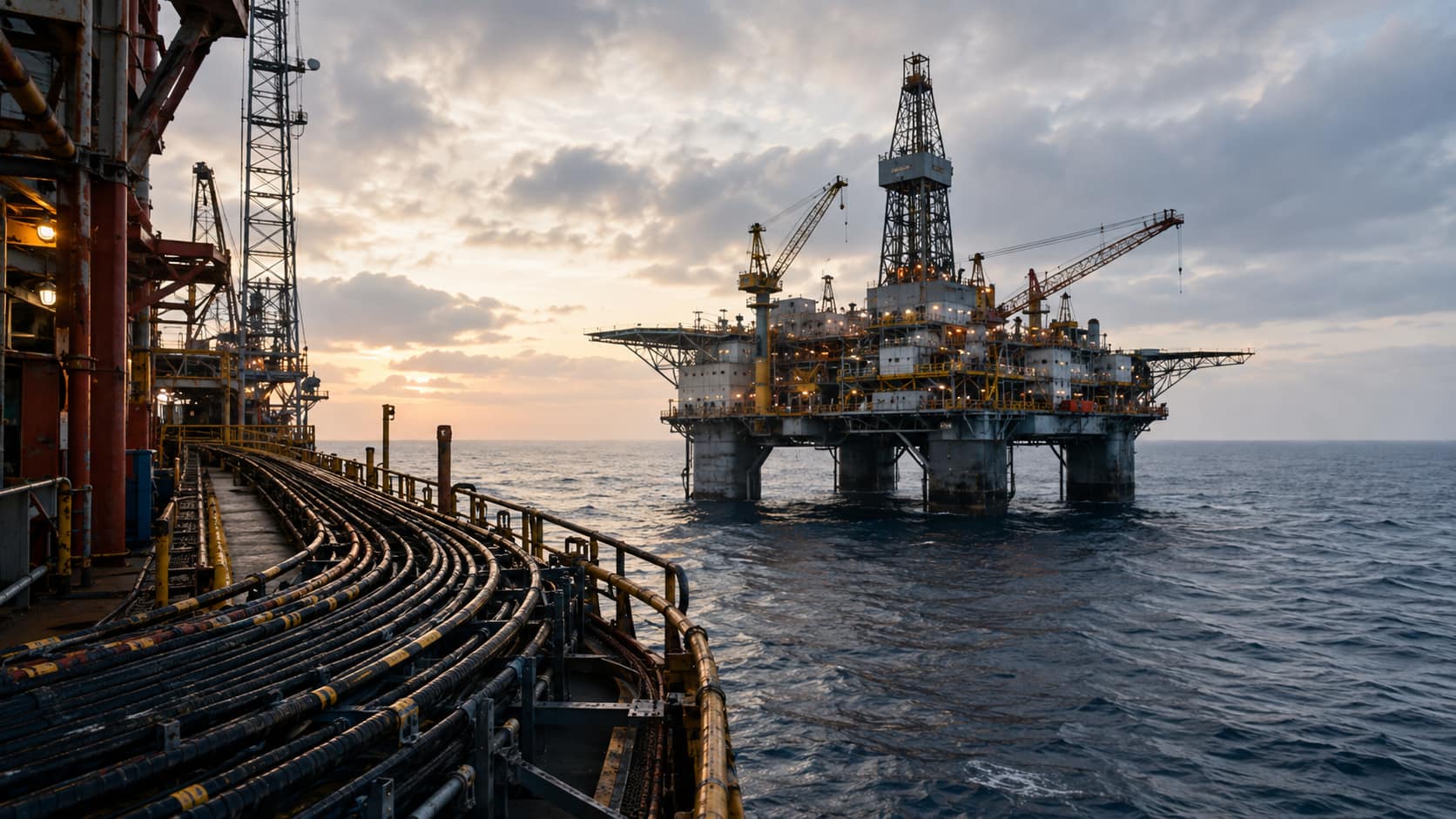

Water, salt air and offshore exposure
Offshore and coastal routes may face salt spray, condensation, UV and restricted installation space at the same time. Confirm the sheath, moisture, sunlight and flame-performance information for the selected construction, then check the project approval scope. A product page reference to a marine standard is not the same as a project-specific approval or hazardous-area certification.
Fixed, mobile and reeling routes
A fixed feeder, a cable dragged behind equipment and a cable repeatedly wound on a reel have different mechanical requirements. If a route moves, provide the bend radius, travel, speed, tension, torsion, guide arrangement and expected cycles. Do not infer continuous reeling suitability from the word “flexible.”
Oil-Resistant, Fire-Resistant and Offshore Requirements
Separate the performance questions. Oil resistance addresses a defined exposure. Flame performance addresses a test method and product construction. Low-smoke or halogen-free requirements address smoke and corrosive-gas behavior under the applicable specification. Offshore approval can include additional construction, testing and documentation requirements.
The TEBAOFLEX Type P product pages publish references including IEEE 1580, IEEE 45, UL 1309, CSA marine references and IEC 60332-3-22 Category A where applicable. Treat these as product-page reference information and confirm the exact standard edition, test report, certificate scope and project acceptance requirement before ordering. A reference is not a blanket claim of certification for every size or configuration.
For fire-resistant oil and gas cables, specify whether the project requires flame retardance, circuit integrity, low smoke, halogen-free materials, hydrocarbon resistance or a combination. These requirements can change the construction and documentation package.
Voltage, Conductor Size, Shielding and Armour
Voltage is a boundary condition, not the full selection. A 600 V control route, a 0.6/1 kV power route and a 2000 V VFD route can require different insulation, screen, conductor and termination decisions. Choose the voltage class from the equipment and system documentation, then verify creepage, clearance, fault duty and terminal compatibility.
Conductor size should be checked against continuous load, starting current, voltage drop, ambient temperature, grouping and installation method. For paired and triad circuits, conductor size also interacts with loop resistance and signal requirements. For VFD routes, the screen and grounding arrangement can matter as much as the copper cross-section.
Armour can improve mechanical protection, but it changes diameter, weight, bending behavior, termination and grounding. An unarmoured cable can be the better choice in a controlled route, while an armoured construction may be required where impact or crushing risk is documented. Select armour by the route, not by habit.
Pair and Triad Instrumentation Cable: Construction and Standards
TEBAOFLEX manufactures gas- and oil-resistant instrumentation cable in pair and triad formation, with solid or stranded conductors, built to BS 5308, IEC 60092-376 and NEK TS 606. These are made-to-order constructions: the screen arrangement, sheath compound and armour are selected against the circuit and the exposure, not taken from a fixed catalogue number.
Pair or triad — choose by the signal, not by habit
A pair is two insulated conductors twisted together with a short, controlled lay. It suits 4–20 mA loops, RTD two-wire circuits, switch contacts and most digital I/O. A triad (also written triple, 1T) is three conductors twisted together and is the correct choice for three-wire RTDs, three-wire transmitters and any circuit where a common return or a lead-resistance compensation leg must share the same twist geometry as the signal legs.
Putting a three-wire RTD into three cores borrowed from separate pairs is a common site improvisation. It breaks the lay symmetry the compensation depends on and shows up later as drift that tracks ambient temperature. If the instrument datasheet says three-wire, specify a triad.
Construction options
| Element | Options | Selection note |
|---|---|---|
| Conductor | Plain or tinned copper to IEC 60228. Class 1 solid, Class 2 stranded, Class 5 flexible | Solid for fixed cable tray and screw terminals; stranded where the route has bends, vibration or repeated termination |
| Conductor size | 0.5 / 0.75 / 1.0 / 1.5 / 2.5 mm² (larger sizes on request) | 0.5 and 0.75 mm² are normally Class 5; Class 2 stranding is offered from 1.0 mm² upward |
| Formation | Pair (P) or triad / triple (T). 1P, 1T, 2P, 3P, 5P, 10P, 15P, 20P, 30P and matching triad counts | Lay length controlled to preserve balance and crosstalk performance |
| Insulation | PE (BS 5308 Part 1), PVC (BS 5308 Part 2), XLPE, EPR / HEPR, HFFR for halogen-free builds | EPR and XLPE carry the higher continuous temperature; PVC is the lower-cost fixed-indoor option |
| Individual screen (IS) | Aluminium/polyester or copper-backed polyester tape around each pair or triad, with tinned copper drain wire | Required where low-level analogue signals run alongside VFD, motor or switching circuits |
| Overall / collective screen (OS) | Al/PET tape with drain wire, or tinned copper wire braid | Braid gives better low-frequency and mechanical screen performance than tape alone |
| Inner sheath / bedding | PVC, PE or halogen-free thermoplastic elastomer | Fitted under armour or braid to protect the screen assembly |
| Armour | Unarmoured, galvanised steel wire (SWA), galvanised steel wire braid (GSWB) or tinned copper wire braid (TCWB) | BS 5308 Type 1 is unarmoured; Type 2 carries SWA over a bedding layer |
| Outer sheath | PVC, LSZH / LSHF, SHF2 or MUD-resistant elastomer | Specify MUD-resistant where drilling fluids and hydrocarbons contact the cable |
| Voltage rating | 150/250 V (300 V) or 300/500 V | Instrumentation circuits are normally 150/250 V; 300/500 V where control circuits share the same cable |
| Temperature range | PVC −15 to +70 °C, PE −30 to +70 °C, XLPE/EPR −40 to +90 °C | Confirm the ambient, the solar gain and the terminal rating separately — the lowest of the three governs |
Which standard applies to your project
| Standard | Typical scope | Voltage | Insulation | Notes |
|---|---|---|---|---|
| BS 5308 Part 1 (PAS 5308 Part 1) | Onshore process plant, refineries, petrochemical | 300/500 V | PE | Type 1 unarmoured; Type 2 SWA armoured over bedding |
| BS 5308 Part 2 (PAS 5308 Part 2) | Onshore process plant where PE is not required | 300/500 V | PVC | Same Type 1 / Type 2 armour split as Part 1 |
| IEC 60092-376 | Ships and offshore units, fixed installation | 150/250 V (300 V) | Extruded solid insulation | The base standard NEK 606 instrumentation types are built to |
| NEK TS 606 — RFOU(i) / RFOU(c) | Offshore, drilling and topside, mud-exposed | 250 V | EPR | Flame-retardant, MUD-resistant SHF2 sheath, −40 to +90 °C |
| NEK TS 606 — BFOU(i) / BFOU(c) | Offshore circuits requiring survival during fire | 250 V | EPR over mica glass tape | Fire-resistant to IEC 60331-21. Manufactured by TEBAOFLEX and certified to IEC 60331-21 |
Suffix convention: (i) denotes individually screened pairs or triads, (c) denotes a collective (overall) screen only. Where a specification calls for IS/OS it is asking for both — individual screens on every pair or triad and an overall screen over the assembly.
Screening: the decision that causes most of the rework
- Collective screen only (OS) — acceptable where all circuits in the cable are the same type and no low-level analogue signal shares the bundle with switched or drive circuits.
- Individual screens (IS) — needed once pairs of different signal levels share one cable. Without them, crosstalk between a contact-closure pair and a 4–20 mA pair is a recurring commissioning fault.
- Individual plus overall (IS/OS) — the default for mixed instrumentation running near VFDs, and the arrangement most EPC specifications ask for on offshore packages.
- Earthing — screens should be bonded at one end only for analogue loops. Specify the drain wire size and the intended bonding point at enquiry; it affects the screen construction we build.
Solid or stranded
Solid conductors give a cleaner termination in cage-clamp and screw terminals and a slightly lower DC resistance for the same nominal area. They are the normal choice for fixed instrument tray and trench routes. Stranded conductors are specified where the cable passes through a junction box that gets opened repeatedly, where there is machinery vibration, or where the bending radius on the route is tight. On a drilling package with movement and re-termination, stranded is usually the safer specification even though the standard permits solid.
Oil, gas and drilling-mud exposure
“Gas resistant” and “oil resistant” describe the sheath and its behaviour after prolonged hydrocarbon contact, not the conductor or the insulation. A PVC sheath will harden and crack after extended exposure to drilling fluids; an elastomeric MUD-resistant sheath to NEK 606 is tested for it. If the cable route passes the shaker house, the mud pits or any area where oil-based mud is handled, specify the MUD-resistant sheath and say so at enquiry — it is a different compound, not an option that can be added later.
TEBAOFLEX compounds its MUD-resistant sheath in-house, so the formulation can be adjusted against the specific fluid the installation will see rather than being limited to a single bought-in grade. Where the circuit must also survive a fire, we manufacture the fire-resistant BFOU construction with a mica glass tape barrier, certified to IEC 60331-21.
What a Cable RFQ Should Include
- Circuit: AC or DC, system voltage, phase arrangement and load profile.
- Construction: conductor size, cores, pairs, triads, screen, armour and sheath.
- Route: one-way length, installation area, supports, tray/raceway, fixed or moving duty.
- Movement: travel, speed, bend radius, tension, torsion, reel geometry and cycles.
- Environment: crude oil, diesel, hydraulic fluid, drilling mud, water, salt, UV, abrasion and temperature.
- Approval: required standard edition, test reports, certificates, flame/smoke/halogen requirements and authority review.
- Commercial details: quantity, drum length, packing, delivery destination and requested datasheet format.
A cable marking, cross-section drawing, equipment manual or clear photograph of an existing cable can prevent an incorrect replacement. Send the information through the TEBAOFLEX RFQ route for technical review.
Common Oil and Gas Cable Selection Mistakes
- Choosing only by voltage. Voltage does not define the mechanical, chemical, shielding or approval requirements.
- Using a flexible cable as a reeling cable. Continuous winding requires verified drum geometry, tension, bend and cycle limits.
- Using “oil resistant” as a complete approval. Fluid, temperature, contact duration and test basis must be identified.
- Assuming fire performance equals circuit integrity. Flame retardance and fire survival are different project requirements.
- Ignoring VFD EMC and grounding. Screen termination, separation and drive requirements must be reviewed together.
- Comparing prices without equal scope. Conductor metal, screens, armour, tests, drums and certificates can change the quotation.
- Copying a model name without checking construction. Similar names can describe different cores, sizes, voltage classes or approvals.
Application-by-Application Selection Workflow
Drilling rigs and well-service equipment
Begin with the equipment schedule rather than a catalogue name. Separate generator or package power, VFD motor circuits, control panels, instrumentation and temporary mobile connections. Record where the cable is fixed, where it moves, and where it can be exposed to drilling fluid, diesel, mud, vibration or impact. The quotation should identify the circuit, route and cable construction separately so a control cable is not accidentally compared with a power cable using only its voltage rating.
For mobile equipment, add the travel distance, bend path, pulling method, expected handling and any reel or guide details. A cable used during rig moves may need a different mechanical review from a cable installed permanently inside a package. If the project includes hazardous-area equipment, keep the cable selection linked to the approved system documentation rather than treating a cable material claim as an area certification.
Refinery and petrochemical plants
Refinery routes often combine fixed tray, conduit, equipment connections and instrument panels. Divide the schedule by voltage and function, then mark the exposure for each route. Power feeders may need one construction, instrument pairs another, and VFD motor circuits a third. Include the required flame, smoke, halogen, oil and temperature criteria in the cable schedule so suppliers return comparable options.
Where an armour or screen is required, state how it will be bonded and terminated. Where a cable passes between areas with different temperatures or mechanical constraints, list the transition and support detail. These small route decisions can control the cable diameter, bend radius, gland selection and document package.
Offshore modules and coastal packages
Offshore selection should identify the module, deck or equipment zone, then document salt air, moisture, sunlight, temperature cycling, vibration, fire-performance requirements and available space. Ask for the exact product construction, standard edition, test reports and certificate scope that the project accepts. Do not combine a generic “marine” label with an unverified assumption about a specific platform or vessel approval.
For offshore instrumentation, pair/triad arrangement, screen, armour and termination are part of the signal design. For power and VFD circuits, route length, grounding and EMC should be coordinated with the equipment supplier. A technically strong RFQ makes this coordination visible before the quotation is issued.
How to Compare Oil and Gas Cable Supplier Quotes
Compare quotations by equal technical scope. A lower number may reflect a smaller conductor, fewer cores, different armour, shorter drum length, fewer test documents or a different approval basis. Put the requested construction and documents in the RFQ and ask each supplier to identify any deviation.
| Field | What to compare | Why it matters |
|---|---|---|
| Electrical construction | Voltage, conductor material/size, cores, pairs, triads and screen | Controls load, signal behavior, voltage drop and termination |
| Mechanical construction | Armour, sheath, reinforcement, bend radius and movement limits | Controls handling, support, impact and service-life risk |
| Environmental scope | Oil, mud, moisture, UV, salt, temperature and flame requirements | Defines whether the published performance applies to the route |
| Evidence package | Datasheet, drawings, routine/type tests, certificates and markings | Allows engineering and inspection teams to verify the selection |
| Delivery scope | Drum length, packing, quantity, destination and document format | Prevents hidden commercial differences in otherwise similar quotes |
Ask the supplier to mark the quote as compliant, alternative or pending confirmation for every requested field. Where a product page lists a standard reference, request the applicable edition and evidence for the ordered size and construction. Where the project requires hazardous-area or fire-survival approval, request the project-specific documentation instead of relying on a general marketing phrase.
Evidence Boundaries and Approval Questions
Technical cable content is useful only when the claim has the right scope. A manufacturer product page can describe its own published construction, but it cannot by itself prove that every configuration is accepted for every jurisdiction, hazardous area, vessel, refinery or installation method. Keep the following questions visible during review:
- Does the requested standard apply to this voltage, core arrangement and size?
- Is the document a product reference, a test report, a certificate or an authority approval?
- Does the environmental statement match the actual fluid, temperature and exposure duration?
- Does the movement statement cover fixed, occasional-flex, trailing or continuous-reeling duty?
- Does the termination and gland system accept the conductor, armour and screen construction?
- Does the project require a local code, customer specification or inspection witness beyond the cable standard?
These questions do not make procurement slower. They prevent a technically plausible but poorly documented cable from reaching installation, where a late substitution can affect drawings, glands, terminations, testing and approval.
Next Step: Choose the Right Cable Family
Start with the Oil and Gas Cables category for the published Type P power, control, signal and VFD range. Use the Oil, Gas and Petrochemical Cable Solutions page when the project spans drilling, refinery, petrochemical or offshore applications.
For a technical recommendation, send the voltage, conductor size, route, movement duty and environmental exposure. TEBAOFLEX can then review the relevant construction and prepare a project-specific datasheet or quotation. The final cable suitability remains subject to the approved equipment design, applicable standard and local authority requirements.
Oil and Gas Cable Selection FAQ
What is the best cable for an oil and gas project?
There is no single best cable for every oil and gas project. Select by circuit duty, voltage, conductor size, environment, movement, shielding/armour and approval requirements. Start with the category and provide the route details for technical review.
Are solid pair and triad cables the same?
No. Pair and triad constructions provide different conductor arrangements for instrumentation and control circuits. Confirm the signal design, screen, termination and required loop performance before choosing a cable.
Can Type P cable be used for a VFD?
Only when the published construction and the project drive requirements match. Confirm voltage, insulation stress, cable length, screen/grounding, EMC, termination and the drive manufacturer’s instructions.
What information is needed for an oil and gas cable quotation?
Provide voltage, conductor size, cores/pairs/triads, length, route, movement, fluid and environmental exposure, shielding/armour, fire requirements, standards, quantity and destination. A cable drawing or existing marking is useful.
