Electrical scope
- Rated voltage and conductor size
- Power, earth, pilot and control cores
- Screen, grounding and ground-check design
- Route length and voltage-drop basis
MINING & TUNNELING CABLES
Mining cable selection at a glance
Which mining and tunneling cable fits the duty?
Choose a mining or tunneling cable by movement duty first, then verify voltage, grounding and protection. Fixed tunnel feeders may use screened or armoured MV cable such as 2XSEYQY; Type W supports applicable portable power without ground-check; Type G-GC adds grounding and ground-check; SHD-GC covers shielded portable mining power in the published 2–25 kV range. Powered reels and LHDs need a cable matched to drum diameter, pull, speed and cycles, such as NSHTOEU 0.6/1 kV. TBM routes may require an MV reeling construction such as (N)TSCGECWOU. Confirm conductor arrangement, bend route, mechanical loads, jacket exposure, terminations, standard and documents before ordering.
Selection boundary: the table below narrows the cable family. Final suitability depends on the machine, route, electrical protection system, local rules and the approved project specification.
Mining cable selection table by movement duty
Use movement duty to shortlist the construction, then verify the electrical system and mechanical limits on the linked product page.
| Application duty | Cable route | Published voltage | Confirm before RFQ | Product |
|---|---|---|---|---|
| Fixed tunnel distribution | Screened, armoured MV feeder | 2XSEYQY: 6/10 kV | Fixed or approved equipment route, earthing, terminations, armour and bend limits; not continuous reeling | 2XSEYQY |
| Portable power without ground-check | Controlled dragging or non-automatic reel handling | Type W: 600/2000 V | Conductor functions, grounding scheme, size, movement, bend path and applicable code | Type W |
| Portable mining power with ground-check | Flexible round portable or trailing connection | Type G-GC: 2000 V | Grounding and ground-check circuit, conductor size, route movement, jacket duty and documentation | Type G-GC |
| Shielded portable mining power | Mobile or semi-mobile equipment requiring shielding and ground-check | SHD-GC: 2, 8, 15 and 25 kV | Voltage class, screen and grounding design, size, jacket, bend route, terminations and protection system | SHD-GC |
| Underground LHD powered reel | Repeated payout and recovery on mono-spiral or cylindrical reels | NSHTOEU: 0.6/1 kV | Drum geometry, cable pull, travel length, speed, cycles, guides and support requirement | NSHTOEU |
| TBM medium-voltage reeling | Moving MV supply for tunnel boring machinery | (N)TSCGECWOU: 3.6/6-18/30 kV | Machine zone, reel route, MV termination, control and protective conductors, moisture and abrasion | TBM cable |
This is a family-level screening table, not an approval of one cable for every mine, machine or jurisdiction.
What determines mining and tunneling cable price?
There is no reliable universal price per metre for this category. Two cables with the same conductor size can have different costs because voltage class, screens, grounding, reinforcement, jacket, movement duty and acceptance documents change the construction and production scope.
Movement and protection
- Fixed, trailing, basket or powered-reel duty
- Drum diameter, layers, pull, speed and cycles
- Abrasion, impact, crush, tensile and torsional load
- Water, mud, oil and temperature exposure
Construction and evidence
- Insulation, sheath, armour and reinforcement
- Named standard and edition
- Certificate or approval scope
- Routine, type, witness or third-party test needs
Order and logistics
- Required length, quantity and production drum lengths
- Marking, colour and project documentation
- Drum, packing and inspection requirements
- Delivery destination and shipping terms
For a comparable quotation, send the same cable schedule, operating duty, document list and delivery basis to every supplier.
Evidence buyers can inspect
Product data, company identity and document scope
TEBAOFLEX is the industrial cable brand of Jiangsu Tebaoflex Special Cable Co., Ltd. Product pages in this category publish model-specific voltage, construction, application and selection boundaries so a buyer can compare the proposed cable with the equipment duty before requesting a drawing or quotation.
- Manufacturing context: the About Us page reports a manufacturing site of more than 20,000 m2, over 12 production lines and annual cable production capacity of 150,000 km.
- Visible document references: the About Us page shows CE, KTL, UL and VDE documents for applicable cable products or approval scopes.
- Specification evidence: request the final data sheet or drawing, standard edition, test plan, certificate reference, drum schedule and packing list required by the project.
Scope note: a certificate shown at company level does not approve every mining cable. Confirm the exact model, construction, standard and certificate scope before placing an order.
- 20,000+ m2
- Company-reported manufacturing site
- 12+
- Company-reported production lines
- 150,000 km
- Reported annual cable production capacity
Continue with the guide that matches the decision
These internal engineering guides cover the decisions that should be settled before a cable family is converted into a purchase specification.
Send an RFQ that can be checked against the duty
Attach the cable schedule or existing marking, machine model, electrical data, movement details, route length, environment, standard, quantity and destination.

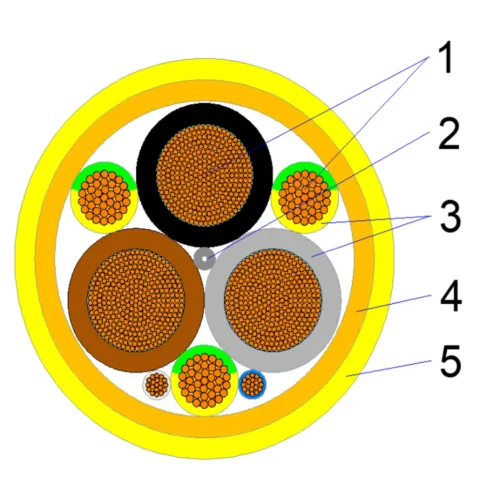

BUFLEX 0.6/1kV Reeling Cable with 2 Pilot Cores
F-(N)TSCGEWÖU Medium Voltage Conveyor & Mining Cable 3.6/6–18/30 kV
Four Conductor Flat Type W Cable 600/2000V for Mining Equipment
Heavy-Duty TRMC-J Mining Cable

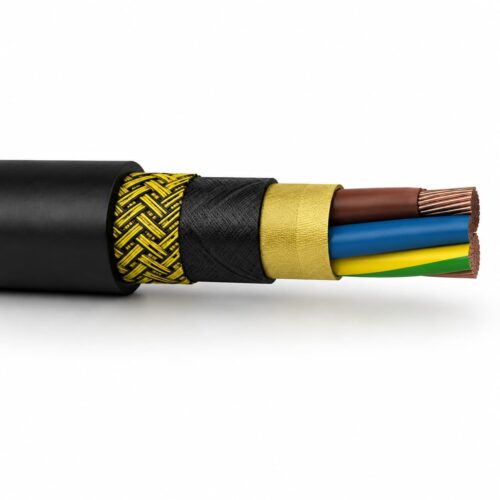

NSHTOEU 0.6/1kV LHD Mining Reeling Cable

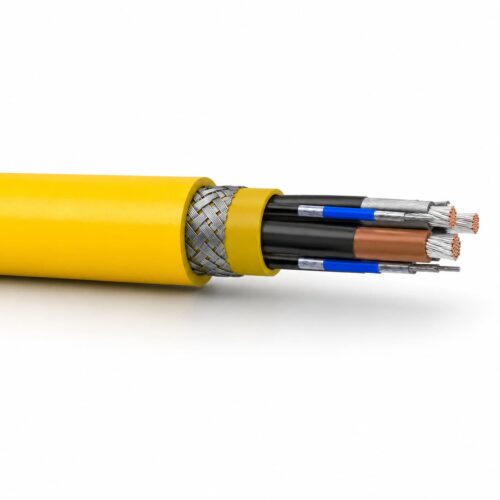

NSSHCGEOEU 0.6/1kV High-Tensile Reeling Mining Cable
NSSHKCGEOEU 0.6/1kV Coal Cutter Trailing Cable
NTMCGCWÖU Single-Core MV Cable 3.6/6kV to 18/30kV
NTMCWOEU 26/45 kV Flexible Switchgear Cable
NTSFLCGEWOEU Medium Voltage Flat Reeling Cable

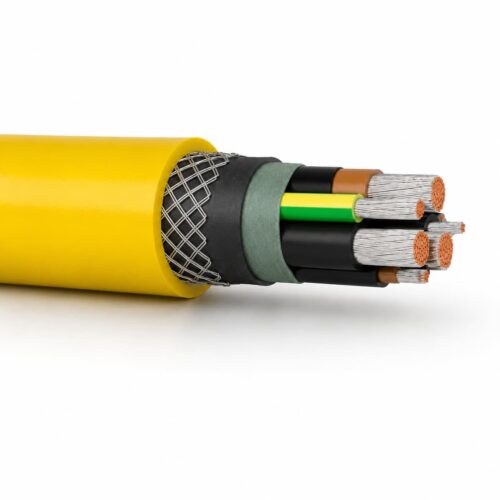

NTSWOEU 0.6/1kV E-Loader Mining Cable

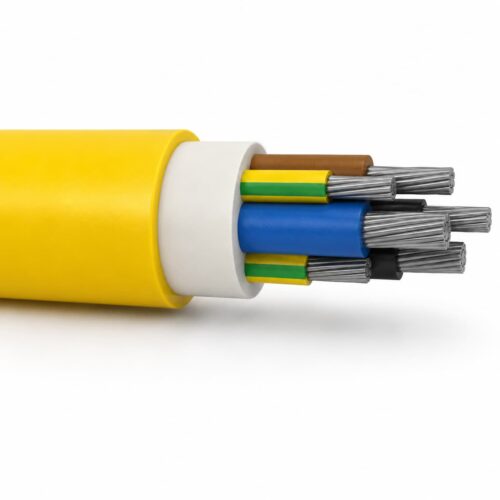

NTSWÖU-J 0.6/1kV Flexible Trailing Cable

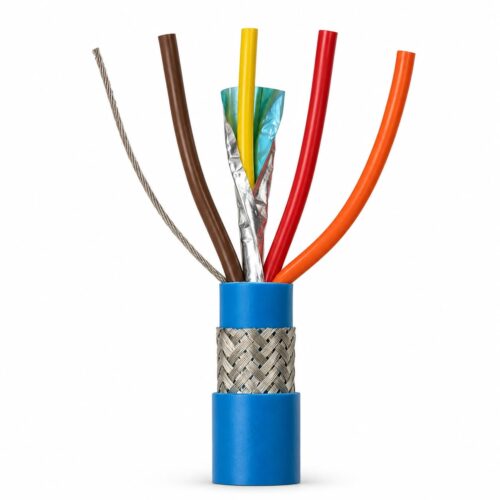

P1209 Accessor Trunk Cable for Underground Mine Monitoring Systems
POLYFLEX MINE 0.6/1 kV Heavy-Duty PUR Mining Cable
R-(N)TSCGEWÖU Medium Voltage Reeling Cable 3.6/6–18/30 kV
SHD-GC Cable 2kV-25kV Mining Power Cable
Submersible Pump Motor Cable 450/750V 0.6/1kV with Control Cores

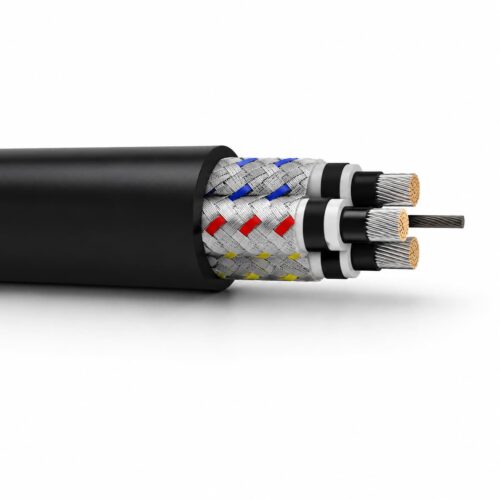

Type 209 Mining Cable
Type 210 Flexible Rubber Mining Cable 1.1kV
Type 240 Underground Coal Mine Cable 1.1kV to 11kV
Type 241.1 Mining Cable 1.1 kV | Type 241 Family
Type 41 Cable 640/1100V Mining | TEBAOFLEX
Type 611 Cable 6.35/11kV Mining | TEBAOFLEX
Type 61A Cable 640/1100V Mining | TEBAOFLEX
Type 622 Mining Cable | TEBAOFLEX
TEBAOFLEX supplies mining, drilling and tunnelling cables for underground mines, open-pit operations, quarries, TBM projects and heavy mobile equipment. The range covers low-voltage and medium-voltage mining power cable, trailing cable, reeling cable, TBM cable, shielded portable cable and flexible rubber cable. Use this page to compare a cable family by movement duty, voltage, grounding, shielding and environmental exposure before requesting a project quotation.
A mining cable is not selected by voltage alone. The same machine may need a fixed feeder, a dragged trailing cable and a powered-reel cable, each with different bend, tensile, torsion, abrasion and grounding limits. Send the equipment and route data with your enquiry so the proposed construction can be checked against the actual duty.
Mining and Tunneling Cable Families
Fixed tunnel and mine distribution: screened or armoured medium-voltage feeders such as 2XSEYQY 6/10 kV tunnel power cable for approved fixed routes.
Trailing cable for mobile equipment: flexible Type W, Type G-GC, SHD-GC and comparable constructions for drills, loaders, pumps, cutters and portable substations. Confirm grounding and ground-check functions rather than treating the cable names as interchangeable.
Mining reeling cable: cable for LHDs, shovels, draglines, stackers, reclaimers and powered drums. Drum diameter, winding layers, speed, pull, guides and cycle count control the construction.
TBM and tunnelling cable: medium-voltage reeling and auxiliary cables for tunnel boring machines where water, slurry, dust, vibration, restricted space and repeated movement occur together.
Low-voltage flexible mining cable: 0.6/1 kV power, lighting, pump, control and VFD routes where oil, water, flame, abrasion and repeated handling still need to be reviewed.
Mining Cable Selection by Movement Duty
Project requirementShortlistConfirm before ordering
Fixed tunnel feederScreened or armoured MV cableInstallation method, earthing, bend limits, terminations and approved standard
Portable power without ground-checkType W or applicable flexible mining cableVoltage, conductor functions, movement path, abrasion and local code
Portable power with ground-checkType G-GC or SHD-GC familyGrounding, ground-check circuit, shield, voltage class and protection system
Powered drum or LHDMining reeling cableDrum diameter, layers, travel, speed, pull, reverse bend and operating cycles
TBM or tunnel boring machineMV TBM reeling cableMachine zone, reel geometry, slurry/water exposure, vibration and monitoring cores
What Determines Mining and Tunneling Cable Price?
A reliable mining cable price depends on more than conductor metal. The quotation is affected by voltage class, copper cross-section, core and pilot arrangement, screen or armour, jacket material, reinforcement, minimum order length, drum packing, test documents, certification scope, delivery destination and the mechanical duty. Reeling and trailing cable often require a higher mechanical specification than a fixed cable with the same conductor size.
For an apples-to-apples comparison, ask suppliers to state the published construction, voltage, conductor size, grounding or ground-check arrangement, minimum bending radius, permitted tensile load, environmental rating, test basis and documentation included. A low price without the same duty and document scope is not a like-for-like replacement.
Mining Cable Supplier and Manufacturer Support
TEBAOFLEX supports mine operators, drilling contractors, TBM teams, OEMs, distributors and engineering buyers with product selection, replacement identification and project-based manufacturing review. Depending on the specification and quantity, the construction can be reviewed for conductor size, voltage, pilot or monitoring cores, screen, grounding, jacket material, anti-torsion reinforcement, marking, drum length and test documentation.
For North American projects, compare SHD-GC cable, Type G-GC and Type W by the complete electrical and mechanical requirement. For European or international projects, provide the requested standard edition and approval scope for (N)SHOU, (N)TSCGEWOU, (N)TMCETMPU and related cable families. Final suitability depends on the equipment, route, local rules and approved project specification.
Information Required for a Mining Cable RFQ
Existing cable marking, model or a clear product photograph.
Rated voltage, conductor size, number of power, earth, pilot and control cores.
Machine type, manufacturer/model, route length and operating cycle.
Fixed, trailing, suspended, basket, reeling or TBM movement duty.
Drum diameter, winding layers, speed, pull, guide arrangement and minimum bend radius for reeling.
Water, mud, oil, drilling fluid, abrasion, impact, UV and temperature exposure.
Required standard, certificate/test report scope, quantity, packing and delivery destination.
Send your mining or tunnelling cable specification for RFQ and include the route drawing or equipment manual when available. For application guidance, continue to the Mining and Tunneling Cable Solutions page.
Additional Mining Cable Models
These model pages extend the mining and tunnelling range beyond the first product listing. Match the model to the equipment, voltage, movement duty, grounding arrangement and route before requesting a quotation.
Monitoring and low-voltage trunk: P1209 Accessor Trunk Cable.
Heavy mobile trailing: TRMC-J Mining Cable and TYPE275 1.1 kV Flexible Shuttle Car Mining Cable.
Portable boring, scoop and drill routes: Type 210 Flexible Rubber Mining Cable and Type 41 Cable 640/1100V.
Screened coal-mine power families: Type 240 Underground Coal Mine Cable and Type 241 Mining Cable.
Armoured mining power: TYPE260 Armoured Screened Mining Power Cable and Type412 Armoured Mining Power Cable.
Medium-voltage mobile reeling and trailing: Type 622 Mining Cable and Type 63 Mining Cable 1.9/3.3kV.
Fixed feeder and flexible switchgear connection: Type MP-GC 15kV Mine Power Feeder Cable and NTMCWOEU Cable.
